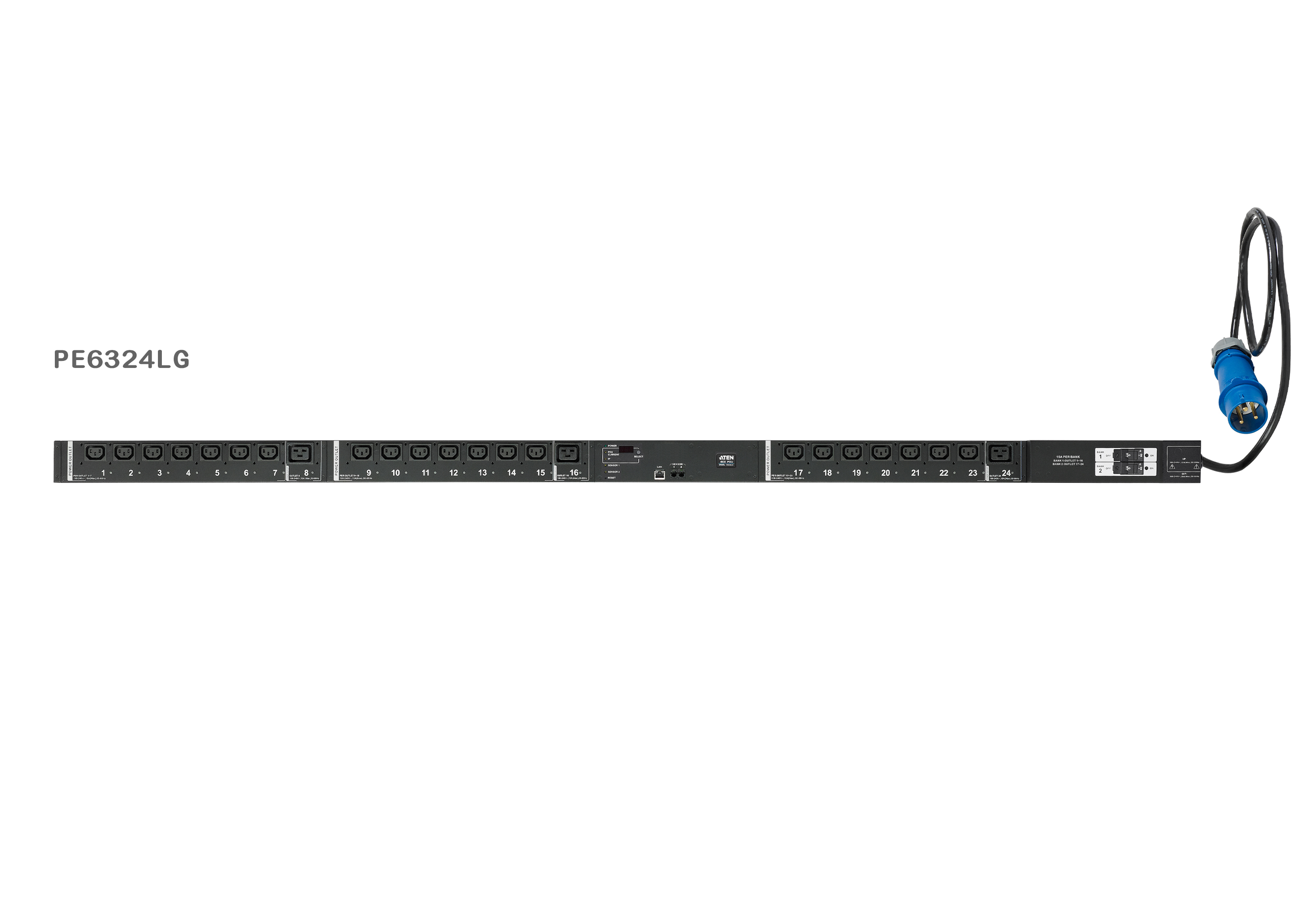

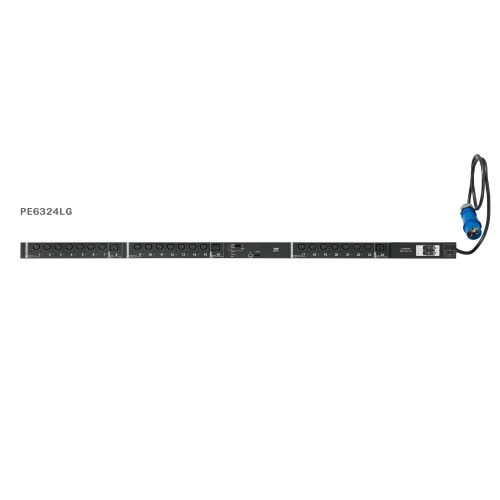

The NRGence PE6324L eco PDUs are low profile intelligent PDUs that contain 24 AC outlets and are available in various IEC or NEMA socket configurations. The low profile series has a smaller input region on the PDU to provide more installation space for data centers.
The PE6324L eco PDUs offers remote power control with real-time power measurement - allowing you to monitor the power status of devices attached to the PDUs, either at the PDU device or Bank level, from practically any location via a TCP/IP connection. The power status of each outlet can be set individually, allowing users to switch each device On/Off.
NRGence eco PDU supports any 3rd party v1, v2 & v3 SNMP Manager Software and ATEN ecoDC (Energy Management Web GUI). eco DC provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it.
The PE6324L eco PDUs offers remote power control with real-time power measurement - allowing you to monitor the power status of devices attached to the PDUs, either at the PDU device or Bank level, from practically any location via a TCP/IP connection. The power status of each outlet can be set individually, allowing users to switch each device On/Off.
NRGence eco PDU supports any 3rd party v1, v2 & v3 SNMP Manager Software and ATEN ecoDC (Energy Management Web GUI). eco DC provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it.
Ethernet LAN (RJ-45) Ports
- 1
Power Protection Features
- Overload
Nominal Output Voltage
- 100-240 V
AC Outlets Quantity
- 24 AC outlet(s)
Power Plug
- IEC 60309
PDU Types
- Metered, Switched
Nominal Input Voltage
- 100-240 V
Monitoring
- Humidity, Power, Temperature
Maximum Current
- 32 A
Load Capacity
- 7360 VA
AC Outlet Types
- C13 coupler, C19 coupler
Rack Capacity
- 0U
Supported Network Protocols
- TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, SNMP V1, V2&V3, Telnet
AC Input Frequency
- 50 - 60 Hz
Compliance Certificates
- RoHS
Certification
- CE, CE-LVD
Storage temperature (T-T)
- -20 - 60 °C
LED indicators
- Yes
Operating relative humidity (H-H)
- 0 - 80%
Operating temperature (T-T)
- 0 - 40 °C
Cable length
- 1.6 m
Weight
- 5.76 kg
Depth
- 1775 mm
Width
- 66 mm
Height
- 44 mm
Housing material
- Metal
Product colour
- Black
Mounting
- Vertical
Brand
- ATEN
