PE5342TG-AX

SKU: AVATEN224
MPN: PE5342TG-AX
Weight: 0.01kg
£575.10 Ex VAT
Manufacturer Brand Image
7360 VA, 100 - 240 V, 50 - 60 Hz, 32 A, 36x IEC 320 C13, 6x IEC 320 C19, 1775x56x48 mm

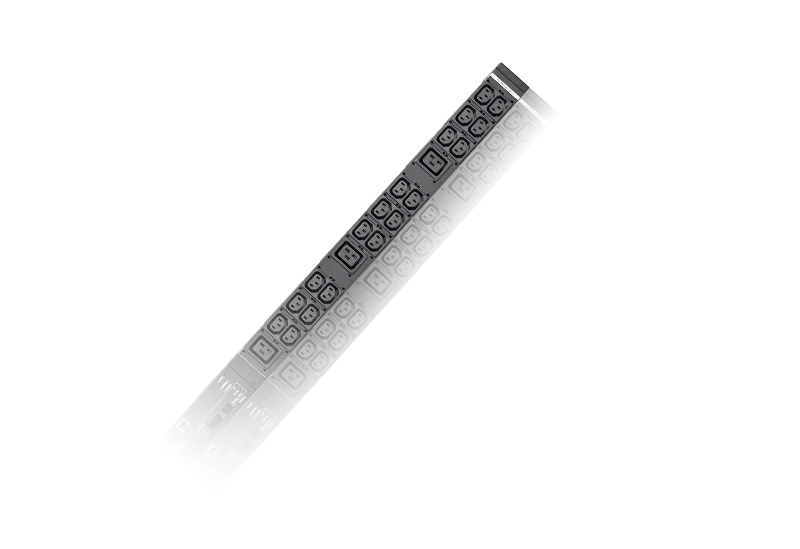

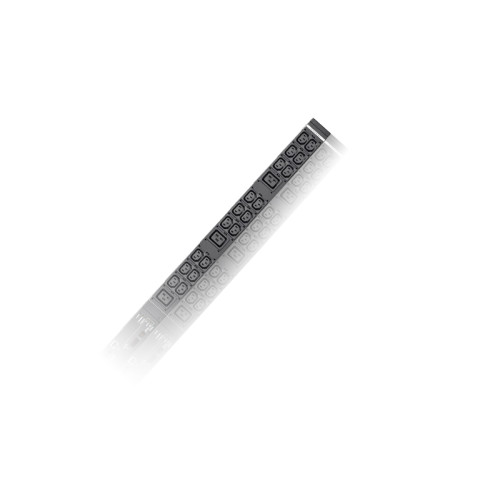

The ATEN NRGence PE5342TG eco PDU is thin form factor intelligent PDU that contain 42 IEC outlets. The lightweight thin form factor PDUs' 5.6 cm width fits tight into server racks, providing more space in the rack to increase air flow and cooling efficiency. This also means faster maintenance thanks to easier access to equipment installed behind PDUs.

NRGence eco PDUs offers real-time power measurement–allowing you to monitor the power status of devices attached to the PDUs, at the PDU and Bank level, from practically any location via a TCP/IP connection.

With the combination of ATEN eco PDUs and eco Sensors, an administrator’s data center is equipped with real time monitoring, measurements and analysis that can produce reports of power usage, PUE, RCI and RTI to meet the ISO 50001 requirements. With these critical indexes, you can generate customized reports about your data center that include energy saving suggestions. Following these suggestions allows you to optimize energy usage to save energy without harming your IT equipment’s reliability. eco Sensors provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it.
Certification
  • CE, CE-LVD
AC Outlets Quantity
  • 42 AC outlet(s)
PDU Types
  • Metered
Nominal Input Voltage
  • 100-240 V
Maximum Current
  • 32 A
Load Capacity
  • 7360 VA
AC Outlet Types
  • C13 coupler, C19 coupler
Rack Capacity
  • 0U
Supported Network Protocols
  • TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, Telnet, SNMP V1,V2&V3
AC Input Frequency
  • 50-60 Hz
Ethernet LAN (RJ-45) Ports
  • 1
Storage temperature (T-T)
  • -20 - 60 °C
Operating relative humidity (H-H)
  • 0 - 80%
Operating temperature (T-T)
  • 0 - 40 °C
Cable length
  • 3 m
Weight
  • 5.57 kg
Depth
  • 56 mm
Width
  • 1775 mm
Height
  • 48 mm
Product colour
  • Black
Brand
  • ATEN
