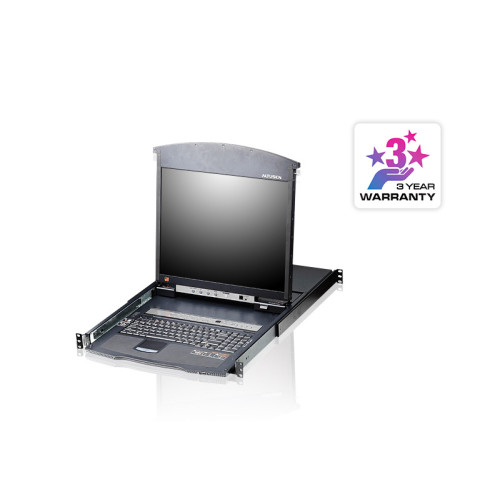

ALTUSEN KL1508A LCD KVM Switch features independently retractable, dual slide 17" or 19" LED-backlit LCD monitor and keyboard with built-in touchpad. The KL1508A KVM switches are control units that allow IT administrators to access and control multiple computers from the LCD console and an extra PS/2 or USB KVM console.
1 x KL1508A 8-Port Cat 5 High-Density Dual Rail LCD KVM Switch with Standard Rack Mount Kit
1 x LIN5-04A2-J11G Firmware Upgrade Cable
1 x LIN2-418K-E12G Power Cord
2x L Brackets
1 x User Instructions
1 x KL1508A 8-Port Cat 5 High-Density Dual Rail LCD KVM Switch with Standard Rack Mount Kit
1 x LIN5-04A2-J11G Firmware Upgrade Cable
1 x LIN2-418K-E12G Power Cord
2x L Brackets
1 x User Instructions
Mouse Port Type
- USB, PS/2
Input Voltage
- 100 - 240 V
Display Diagonal
- 43.2 cm (17")
Video Port Type
- VGA
HD Type
- WUXGA
Power Source
- AC
Hot Keys
- Yes
Console Ports
- PS/2, USB A, VGA (D-Sub)
Input Current
- 1 A
Keyboard Port Type
- USB, PS/2
USB Connector Type
- USB Type-A
Number of Computers Controlled
- 8
PS/2 Ports Quantity
- 2
Push Button
- Yes
Quick Installation Guide
- Yes
Scan Interval
- 1,255 s
Video Bandwidth
- 60 Hz
Rack Capacity
- 1U
Console USB Ports Quantity
- 2
On Screen Display (OSD)
- Yes
Operating relative humidity (H-H)
- 0 - 80%
Product colour
- Black
Housing material
- Metal
Height
- 44 mm
Width
- 480 mm
Depth
- 701.2 mm
Weight
- 15.5 kg
Built-in display
- Yes
Ethernet LAN
- Yes
Operating temperature (T-T)
- 0 - 40 °C
LED indicators
- Yes
Storage temperature (T-T)
- -20 - 60 °C
Storage relative humidity (H-H)
- 0 - 80%
Rack Mounting
- Yes
Ethernet LAN (RJ-45) Ports
- 8
AC Input Frequency
- 50 - 60 Hz
Maximum Resolution
- 1920 x 1200 pixels
Display
- LCD
Brand
- ATEN
