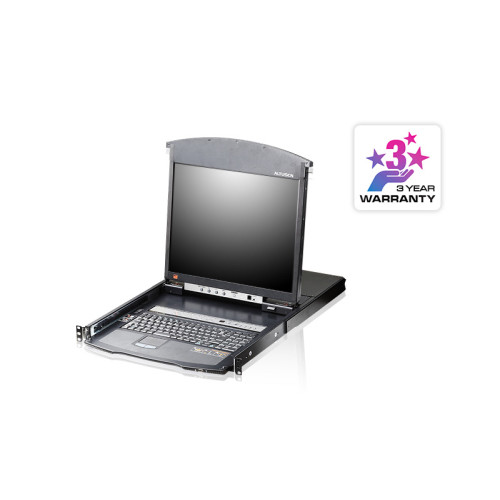

The KL1508Ai Dual Rail LCD KVM Switch is a control unit that allows secure access up to 8 computers from a single KVM (keyboard, video, and mouse) console. It consists of an integrated LCD monitor, keyboard, and touchpad in a 1U rack-mountable retractable sliding housing.
The LCD and keyboard/touchpad modules slide independently of each other. To maximize space in your data center, the keyboard/touchpad module slides back to "hide away" when not in use, while the thin profile LCD monitor rotates back – flush against the rack – allowing convenient monitoring of computer activity.
The KL1508Ai features IP-based connectivity that allows local and remote operators to monitor and access the computers on your installation. Because it uses TCP/IP for its communications protocol, the KL1508Ai can be accessed from any computer on the LAN, WAN, or Internet – whether that computer is located down the hall, down the street, or halfway around the world.
1x KL1508Ai Dual Rail LCD KVM Switch
1x LIN2-418K-E12G Power Cord
1x Standard Rack Mount Kit
1x LIN5-04A2-J11G Firmware Upgrade Cable
2x L Brackets
1x User Instructions
The LCD and keyboard/touchpad modules slide independently of each other. To maximize space in your data center, the keyboard/touchpad module slides back to "hide away" when not in use, while the thin profile LCD monitor rotates back – flush against the rack – allowing convenient monitoring of computer activity.
The KL1508Ai features IP-based connectivity that allows local and remote operators to monitor and access the computers on your installation. Because it uses TCP/IP for its communications protocol, the KL1508Ai can be accessed from any computer on the LAN, WAN, or Internet – whether that computer is located down the hall, down the street, or halfway around the world.
1x KL1508Ai Dual Rail LCD KVM Switch
1x LIN2-418K-E12G Power Cord
1x Standard Rack Mount Kit
1x LIN5-04A2-J11G Firmware Upgrade Cable
2x L Brackets
1x User Instructions
Mouse Port Type
- USB, PS/2
Display Diagonal
- 43.2 cm (17")
Video Port Type
- VGA
VGA (D-Sub) Ports Quantity
- 1
HD Type
- WUXGA
Power Source
- AC
Hot Keys
- Yes
Console Ports
- PS/2, USB A, VGA (D-Sub)
Input Current
- 1 A
Keyboard Port Type
- USB, PS/2
Input Voltage
- 100 - 240 V
Number of Computers Controlled
- 8
PS/2 Ports Quantity
- 2
Push Button
- Yes
Quick Installation Guide
- Yes
Scan Interval
- 1,255 s
Video Bandwidth
- 60 Hz
Rack Capacity
- 1U
Console USB Ports Quantity
- 2
On Screen Display (OSD)
- Yes
Operating relative humidity (H-H)
- 0 - 80%
Product colour
- Black
Housing material
- Metal
Height
- 44 mm
Width
- 480 mm
Depth
- 701.2 mm
Weight
- 15.5 kg
Built-in display
- Yes
Ethernet LAN
- Yes
Operating temperature (T-T)
- 0 - 40 °C
LED indicators
- Yes
Storage temperature (T-T)
- -20 - 60 °C
Storage relative humidity (H-H)
- 0 - 80%
Rack Mounting
- Yes
Ethernet LAN (RJ-45) Ports
- 1
AC Input Frequency
- 50 - 60 Hz
Maximum Resolution
- 1920 x 1200 pixels
Display
- LCD
USB Connector Type
- USB Type-A
Brand
- ATEN
