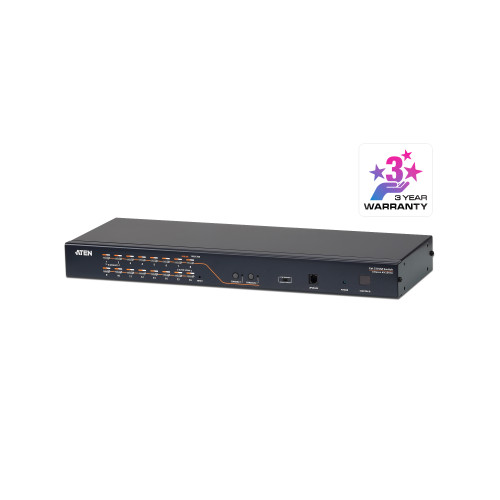

The KH2516A KVM switch is a control unit that allows IT administrators to access and control multiple computers from two PS/2 or USB KVM consoles (two bus). Operators working at up to two consoles can independently and simultaneously take control of up to 16 computers. By daisy chaining up to 15 additional switches, as many as 256 computers can be controlled from the original KVM consoles.
1x KH2516A Cat 5 High-Density KVM Switch
1x Firmware Upgrade Cable
1x LIN2-481K-E12G Power Cord
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions
1x KH2516A Cat 5 High-Density KVM Switch
1x Firmware Upgrade Cable
1x LIN2-481K-E12G Power Cord
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions
Mouse Port Type
- USB, PS/2
Input Voltage
- 100 - 240 V
Video Port Type
- VGA
HD Type
- WUXGA
Power Source
- AC
Hot Keys
- Yes
Console Ports
- PS/2, USB A, VGA (D-Sub)
Input Current
- 1 A
Keyboard Port Type
- USB, PS/2
USB Connector Type
- USB Type-A
Number of Computers Controlled
- 32
PS/2 Ports Quantity
- 2
Push Button
- Yes
Quick Installation Guide
- Yes
Scan Interval
- 1,255 s
Video Bandwidth
- 60 Hz
Console USB Ports Quantity
- 2
Maximum Resolution
- 1920 x 1200 pixels
AC Input Frequency
- 50 - 60 Hz
Ethernet LAN (RJ-45) Ports
- 32
Storage relative humidity (H-H)
- 0 - 80%
Storage temperature (T-T)
- -20 - 60 °C
LED indicators
- Yes
Operating relative humidity (H-H)
- 0 - 80%
Operating temperature (T-T)
- 0 - 40 °C
Ethernet LAN
- Yes
Weight
- 3.21 kg
Depth
- 163.7 mm
Width
- 437.2 mm
Height
- 44 mm
Housing material
- Metal
Product colour
- Black
Brand
- ATEN
