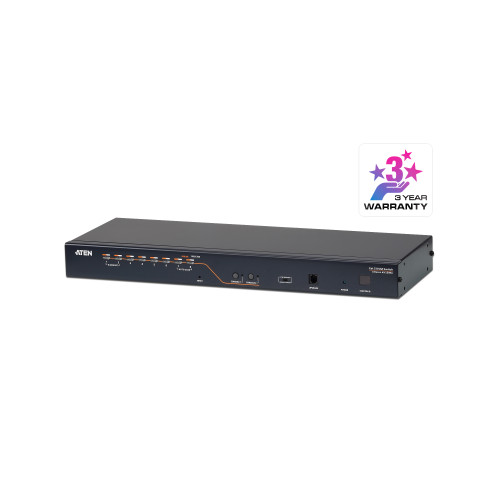

The KH2508A KVM switch is a control unit that allows IT administrators to access and control multiple computers from two PS/2 or USB KVM consoles (two bus). Operators working at up to two consoles can independently and simultaneously take control of up to 8 computers. By daisy chaining up to 15 additional switches, as many as 128 computers can be controlled from the original KVM consoles.
1x KH2508A Cat 5 High-Density KVM Switch
1x Firmware LINS04A2-J11G Upgrade Cable
1x LIN2-481K-E12G Power Cord
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions
1x KH2508A Cat 5 High-Density KVM Switch
1x Firmware LINS04A2-J11G Upgrade Cable
1x LIN2-481K-E12G Power Cord
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions
Mouse Port Type
- USB, PS/2
Input Voltage
- 100 - 240 V
Video Port Type
- VGA
HD Type
- WUXGA
Power Source
- AC
Hot Keys
- Yes
Console Ports
- PS/2, USB A, VGA (D-Sub)
Input Current
- 1 A
Keyboard Port Type
- USB, PS/2
USB Connector Type
- USB Type-A
Number of Computers Controlled
- 8
PS/2 Ports Quantity
- 4
Push Button
- Yes
Quick Installation Guide
- Yes
Scan Interval
- 1,255 s
Video Bandwidth
- 60 Hz
Console USB Ports Quantity
- 4
Operating temperature (T-T)
- 0 - 50 °C
Product colour
- Black
Housing material
- Metal
Height
- 44 mm
Width
- 437.2 mm
Depth
- 155.8 mm
Weight
- 3.16 kg
Built-in display
- No
Ethernet LAN
- Yes
Operating relative humidity (H-H)
- 0 - 80%
LED indicators
- Yes
Storage temperature (T-T)
- -20 - 60 °C
Storage relative humidity (H-H)
- 0 - 80%
Ethernet LAN (RJ-45) Ports
- 8
AC Input Frequency
- 50 - 60 Hz
Maximum Resolution
- 1920 x 1200 pixels
Brand
- ATEN
