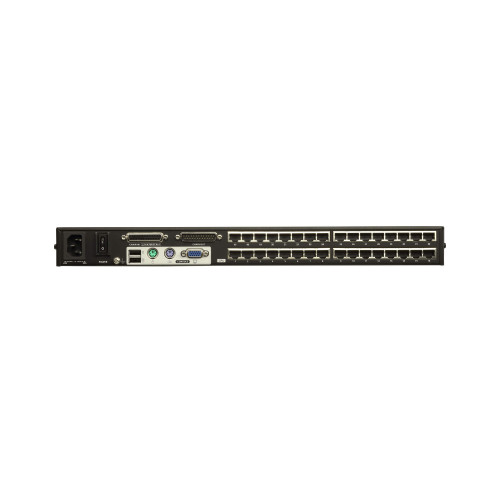

The KH1532A KVM switches are control units that allow IT administrators to access and control multiple computers from a single PS/2 or USB KVM console (keyboard, monitor, and mouse). Operators can take control of up to 32 (KH1532A) computers. By daisy chaining up to 31 additional switches, as many as 1024 computers can be controlled from a central KVM console.
1x KH1532A Cat 5 High-Density KVM Switch
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions
1x KH1532A Cat 5 High-Density KVM Switch
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions
PS/2 Ports Quantity
- 2
Video Port Type
- VGA
VGA (D-Sub) Ports Quantity
- 1
HD Type
- WUXGA
Power Source
- AC
Hot Keys
- Yes
Console Ports
- PS/2, USB A, VGA (D-Sub)
Input Current
- 1 A
Keyboard Port Type
- USB, PS/2
Mouse Port Type
- USB, PS/2
Number of Computers Controlled
- 32
Input Voltage
- 100 - 240 V
Push Button
- Yes
Scan Interval
- 1,255 s
Rack Capacity
- 1U
Console USB Ports Quantity
- 2
Firmware Upgradeable
- Yes
Rack Mount Kit
- Yes
On Screen Display (OSD)
- Yes
Number of Users
- 10 user(s)
Daisy Chain
- Yes
Operating relative humidity (H-H)
- 0 - 80%
Product colour
- Black
Housing material
- Metal
Height
- 44 mm
Width
- 437.2 mm
Depth
- 163.7 mm
Weight
- 3.26 kg
Built-in display
- No
Power consumption (typical)
- 4.8 W
Ethernet LAN
- Yes
Operating temperature (T-T)
- 0 - 40 °C
Cables included
- AC
LED indicators
- Yes
Storage temperature (T-T)
- -20 - 60 °C
Rack Mounting
- Yes
Ethernet LAN (RJ-45) Ports
- 32
Compliance Certificates
- RoHS
AC Input Frequency
- 50 - 60 Hz
Maximum Resolution
- 1920 x 1200 pixels
USB Connector Type
- USB Type-A
Brand
- ATEN
