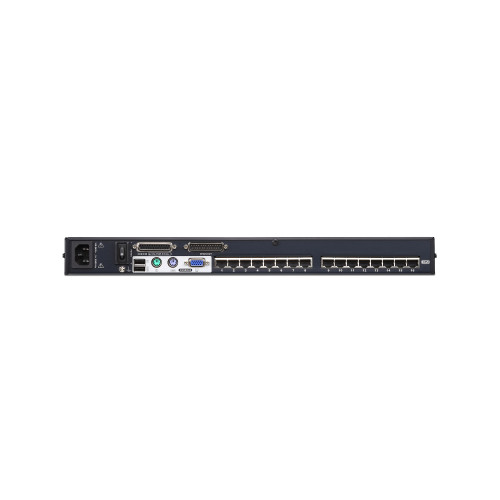

The KH1516A KVM switches are control units that allow IT administrators to access and control multiple computers from a single PS/2 or USB KVM console (keyboard, monitor, and mouse). Operators can take control of up to 16 computers. By daisy chaining up to 31 additional switches, as many as 512 computers can be controlled from the original KVM console.
1x KH1516A 16-port Cat 5 High-Density KVM Switch
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-481K-E12G Power Cord
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions
1x KH1516A 16-port Cat 5 High-Density KVM Switch
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-481K-E12G Power Cord
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions
Keyboard Port Type
- USB, PS/2
USB Connector Type
- USB Type-A
Input Voltage
- 100 - 240 V
Video Port Type
- VGA
HD Type
- WUXGA
Power Source
- AC
Hot Keys
- Yes
Console Ports
- PS/2, USB A, USB C
Input Current
- 1 A
Maximum Resolution
- 1920 x 1200 pixels
Mouse Port Type
- USB, PS/2
Number of Computers Controlled
- 16
PS/2 Ports Quantity
- 2
Push Button
- Yes
Quick Installation Guide
- Yes
Scan Interval
- 1,255 s
Video Bandwidth
- 60 Hz
Console USB Ports Quantity
- 2
Ethernet LAN
- Yes
Product colour
- Black
Housing material
- Metal
Height
- 44 mm
Width
- 437.2 mm
Depth
- 163.6 mm
Weight
- 3.12 kg
Built-in display
- No
Power consumption (typical)
- 5.3 W
Operating temperature (T-T)
- 0 - 50 °C
Operating relative humidity (H-H)
- 0 - 80%
LED indicators
- Yes
Storage temperature (T-T)
- -20 - 60 °C
Storage relative humidity (H-H)
- 0 - 80%
Ethernet LAN (RJ-45) Ports
- 16
AC Input Frequency
- 50 - 60 Hz
Brand
- ATEN
