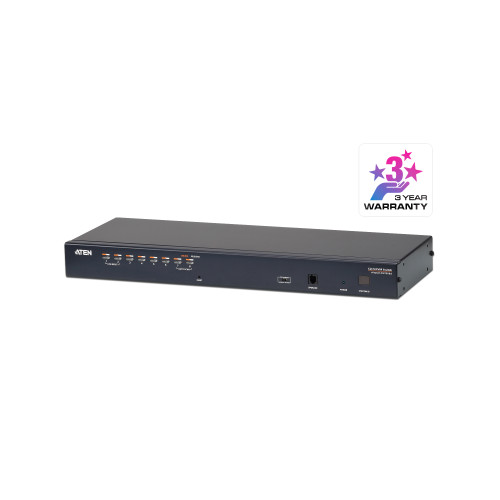

The KH1508A KVM switches are control units that allow IT administrators to access and control multiple computers from a single PS/2 or USB KVM console (keyboard, monitor, and mouse). Operators can take control of up to 8 computers. By daisy chaining up to 31 additional switches, as many as 256 computers can be controlled from the original KVM console.
1x KH1508A 8-port Cat 5 High-Density KVM Switch
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x 0AD8-0C05-24EG Power Cord
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions
1x KH1508A 8-port Cat 5 High-Density KVM Switch
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x 0AD8-0C05-24EG Power Cord
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions
Ethernet LAN (RJ-45) Ports
- 8
Video Bandwidth
- 60 Hz
Scan Interval
- 1,255 s
Quick Installation Guide
- Yes
Push Button
- Yes
Number of Computers Controlled
- 8
Mouse Port Type
- USB, PS/2
Keyboard Port Type
- USB, PS/2
Console Ports
- USB A, VGA (D-Sub)
Hot Keys
- Yes
Power Source
- AC
HD Type
- WUXGA
Video Port Type
- VGA
Input Voltage
- 100 - 240 V
Maximum Resolution
- 1920 x 1200 pixels
AC Input Frequency
- 50 - 60 Hz
Storage relative humidity (H-H)
- 0 - 80%
Storage temperature (T-T)
- -20 - 60 °C
LED indicators
- Yes
Operating relative humidity (H-H)
- 0 - 80%
Operating temperature (T-T)
- 0 - 40 °C
Ethernet LAN
- Yes
Power consumption (typical)
- 5.1 W
Built-in display
- No
Weight
- 3.05 kg
Depth
- 163.6 mm
Width
- 437.2 mm
Height
- 44 mm
Housing material
- Metal
Product colour
- Black
Brand
- ATEN
