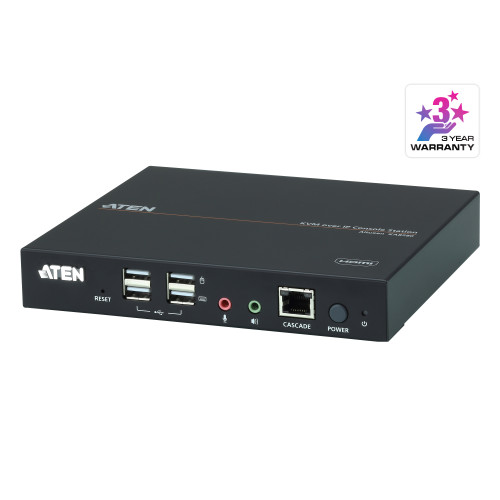

The KVM over IP Console Station KA8280 is a standalone console that replaces PC or NB, enabling users to remotely access, monitor and control all servers connected to multiple ATEN's KVM over IP switches* with impenetrable security against virus threats. It also supports various data encryption methods, ensuring impervious data protection. The KVM over IP Console Station can be deployed anywhere instant access is needed and stringent security required, ideal for applications such as studios, offices, data centers, broadcast stations, control rooms, or network operations centers (NOC).
1x KA8280 HDMI KVM over IP Console Station
1x 0AD8-8005-40MG Power Adapter
1x LIN2-418K-E12G Power Cord
1x Mounting Kit
4x Foot Pad
1x User Instructions
1x KA8280 HDMI KVM over IP Console Station
1x 0AD8-8005-40MG Power Adapter
1x LIN2-418K-E12G Power Cord
1x Mounting Kit
4x Foot Pad
1x User Instructions
Power Source
- DC
Compliance Certificates
- RoHS
Maximum Resolution
- 1920 x 1200 pixels
AC Adapter Included
- Yes
USB Connector Type
- USB Type-A
Input Voltage
- 5 V
Video Port Type
- HDMI
HDM Ports Quantity
- 1
Headphone Outputs
- 1
HD Type
- Full HD+
Ethernet LAN (RJ-45) Ports
- 1
DC-In Jack
- Yes
Keyboard Port Type
- USB
Mouse Port Type
- USB
Push Button
- Yes
Video Bandwidth
- 60 Hz
Audio Connections
- Yes
number of Microphone Inputs
- 1
Serial Ports Quantity
- 1
Serial Port Type
- DE-9 (DB-9)
Built-in display
- No
Product colour
- Black
Housing material
- Metal
Package width
- 98 mm
Package depth
- 325 mm
Package height
- 210 mm
Height
- 28.8 mm
Width
- 155.4 mm
Depth
- 174.2 mm
Weight
- 1.28 kg
Power consumption (typical)
- 4.66 W
Ethernet LAN
- Yes
Package weight
- 1.45 kg
Operating temperature (T-T)
- 0 - 40 °C
Operating relative humidity (H-H)
- 0 - 80%
Cables included
- AC
LED indicators
- Power
Storage temperature (T-T)
- -20 - 60 °C
Rack Mounting
- No
Brand
- ATEN
