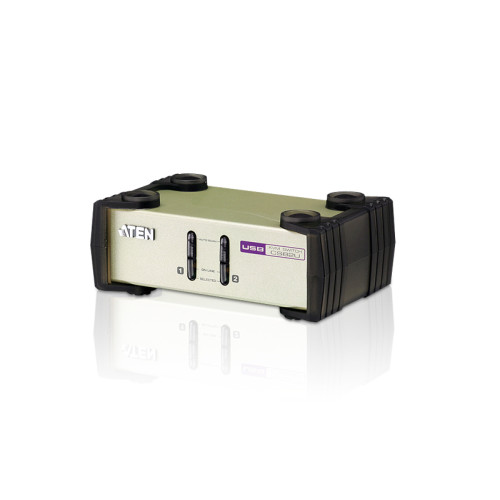

The CS82U PS/2-USB KVM Switch is a desktop control unit that allows users to access two computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS82U comes with ATEN's new Video DynaSyncâ„¢ technology, which eliminates boot-up display problems and optimizes resolution.
1x CS82U PS/2-USB KVM Switch
2x 2L-5302UP PS/2 USB KVM Cables
1x User Instructions
1x CS82U PS/2-USB KVM Switch
2x 2L-5302UP PS/2 USB KVM Cables
1x User Instructions
Keyboard Port Type
- USB
Maximum Resolution
- 2048 x 1536 pixels
Input Voltage
- 5 V
Video Port Type
- VGA
VGA (D-Sub) Ports Quantity
- 2
HD Type
- QXGA
Power Source
- DC
DC-In Jack
- Yes
Hot Keys
- Yes
Console Ports
- USB A, VGA (D-Sub)
Rack Mounting
- No
Mouse Port Type
- USB
Number of Computers Controlled
- 2
Push Button
- Yes
Quick Installation Guide
- Yes
Scan Interval
- 3,5,10,20 s
Video Bandwidth
- 60 Hz
Console USB Ports Quantity
- 2
DDC2B Support
- Yes
Weight
- 869 g
Product colour
- Light grey
Housing material
- Metal
Package width
- 59 mm
Package depth
- 239 mm
Package height
- 175 mm
Harmonized System (HS) code
- 85176200
Height
- 55.5 mm
Width
- 88 mm
Depth
- 140 mm
Built-in display
- No
Power consumption (typical)
- 0.72 W
Package weight
- 981 g
Operating temperature (T-T)
- 0 - 50 °C
Operating relative humidity (H-H)
- 0 - 80%
LED indicators
- Yes
Storage temperature (T-T)
- -20 - 60 °C
Storage relative humidity (H-H)
- 0 - 80%
Brand
- ATEN
