With the ever-growing demand for higher video quality and the evolution of DisplayPort technology, 4K-enabled computers and displays are now widely adopted in visually-intensive and commercial applications. Offering up to 4K resolution, the ATEN CS782DP is at home amongst these demanding scenarios and technological advancements.
1x CS782DP 2-Port USB DisplayPort KVM Switch
2x LIN5-20K1-K12G DisplayPort Cables
2x LIN6-04U1-V1BG USB Cables
2x LIN5-0205-21CG Audio Cables
1x Remote Port Selector
1x User Instructions

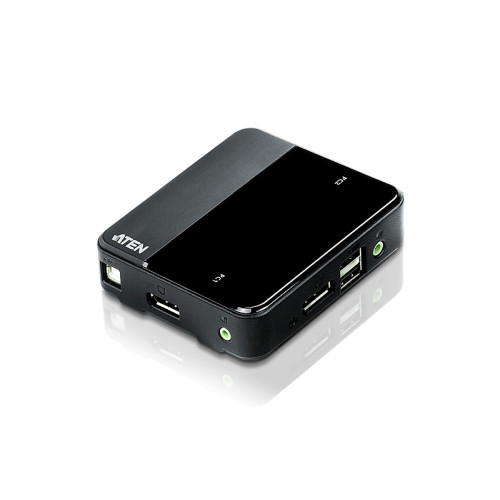

1x CS782DP 2-Port USB DisplayPort KVM Switch
2x LIN5-20K1-K12G DisplayPort Cables
2x LIN6-04U1-V1BG USB Cables
2x LIN5-0205-21CG Audio Cables
1x Remote Port Selector
1x User Instructions
Console Ports
- 3.5mm headphone, DisplayPort, USB A
Maximum Resolution
- 4096 x 2160 pixels
USB Connector Type
- USB Type-A, USB Type-B
Input Voltage
- 5 V
Video Port Type
- DisplayPort
Headphone Outputs
- 1
HD Type
- 4K Ultra HD
Power Source
- DC
USB 2.0 Type-B Ports Quantity
- 2
Hot Keys
- Yes
Rack Mounting
- No
Keyboard Port Type
- USB
Mouse Port Type
- USB
Number of Computers Controlled
- 2
Quick Installation Guide
- Yes
Scan Interval
- 3,5,10,20 s
Video Bandwidth
- 60 Hz
DisplayPorts Quantity
- 2
Audio Connections
- Yes
number of Microphone Inputs
- 1
Weight
- 543 g
Product colour
- Black
Housing material
- Plastic
Package width
- 59 mm
Package depth
- 239 mm
Package height
- 175 mm
Harmonized System (HS) code
- 85176200
Height
- 26.8 mm
Width
- 93 mm
Depth
- 93.7 mm
Built-in display
- No
Power consumption (typical)
- 2.18 W
Package weight
- 687 g
Operating temperature (T-T)
- 0 - 50 °C
Operating relative humidity (H-H)
- 0 - 80%
LED indicators
- Yes
Storage temperature (T-T)
- -20 - 60 °C
Storage relative humidity (H-H)
- 0 - 80%
Brand
- ATEN
