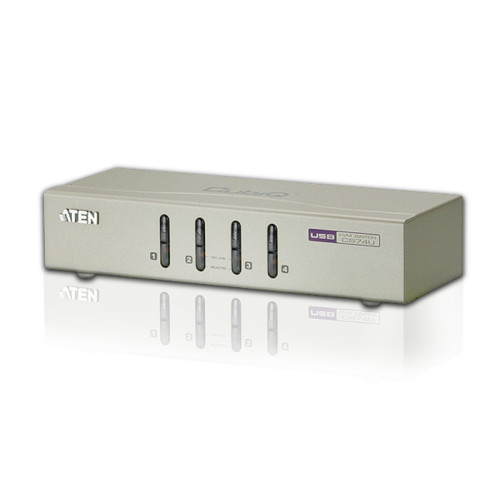

The CS74U 4-Port USB KVM Switch is a desktop control unit that allows users to access four computers from a single KVM console (keyboard and mouse, audio and VGA monitor).
With the CS74U, you can access computers conveniently using port selection pushbuttons located on the unit's front panel.
1x CS74U 4-Port USB KVM Switch
2x Custom KVM Cable (VGA, USB, Audio; 1.2m/4ft)
2x Custom KVM Cable (VGA, USB, Audio; 1.8m/6ft)
1x User Instructions
Note: The provided custom KVM cable set is custom-made to work with CS72U / CS74U, which transmits video, audio, and USB signals from the unit to the connected PC. There are two custom KVM cable sets available for purchase (1.2 m custom KVM cable set: LIN5-23X5-X31G; 1.8 m custom KVM cable set: LIN5-23X5-X32G). To purchase additional custom-made KVM cables, please contact your ATEN dealer for more information.
With the CS74U, you can access computers conveniently using port selection pushbuttons located on the unit's front panel.
1x CS74U 4-Port USB KVM Switch
2x Custom KVM Cable (VGA, USB, Audio; 1.2m/4ft)
2x Custom KVM Cable (VGA, USB, Audio; 1.8m/6ft)
1x User Instructions
Note: The provided custom KVM cable set is custom-made to work with CS72U / CS74U, which transmits video, audio, and USB signals from the unit to the connected PC. There are two custom KVM cable sets available for purchase (1.2 m custom KVM cable set: LIN5-23X5-X31G; 1.8 m custom KVM cable set: LIN5-23X5-X32G). To purchase additional custom-made KVM cables, please contact your ATEN dealer for more information.
Console Ports
- 3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
Rack Mounting
- No
Input Voltage
- 5 V
Video Port Type
- VGA
VGA (D-Sub) Ports Quantity
- 4
Headphone Outputs
- 1
HD Type
- QXGA
Power Source
- DC
DC-In Jack
- Yes
Storage relative humidity (H-H)
- 0 - 80%
Keyboard Port Type
- USB
Mouse Port Type
- USB
Number of Computers Controlled
- 4
Quick Installation Guide
- Yes
Console USB Ports Quantity
- 2
Audio Connections
- Yes
number of Microphone Inputs
- 1
DDC2B Support
- Yes
Depth
- 76.5 mm
Product colour
- Grey
Housing material
- Metal
Package width
- 100 mm
Package depth
- 283 mm
Package height
- 173 mm
Harmonized System (HS) code
- 85176200
Height
- 44 mm
Width
- 200 mm
Weight
- 1.47 kg
Built-in display
- No
Power consumption (typical)
- 0.177 W
Package weight
- 1.67 kg
Operating temperature (T-T)
- 0 - 50 °C
Operating relative humidity (H-H)
- 0 - 80%
Storage temperature (T-T)
- -20 - 60 °C
Brand
- ATEN
