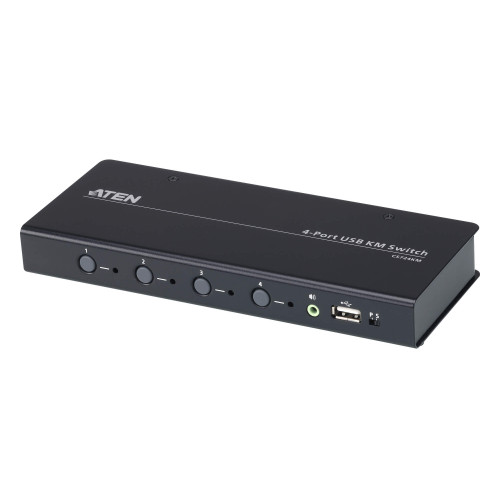

The CS724KM is a 4-Port USB KM Switch that enables users to control up to 4 computers with a single keyboard and mouse. Two switches can be daisy-chained to enable control of up to 8 computers from a single console.
1x 4-port USB Boundless KM Switch
4x LIN6-04U1-V1BG USB Cables (USB 2.0-A to USB 2.0-B; 1.8m/6ft)
4x LIN5-0205-21CG Audio Cables (1.8m/6ft)
1x User Instructions
1x 4-port USB Boundless KM Switch
4x LIN6-04U1-V1BG USB Cables (USB 2.0-A to USB 2.0-B; 1.8m/6ft)
4x LIN5-0205-21CG Audio Cables (1.8m/6ft)
1x User Instructions
Cables included
- Audio (3.5mm), USB
Daisy Chain
- Yes
USB Hub
- Yes
USB 2.0 Type-A Hub Ports Quantity
- 2
Console USB Ports Quantity
- 2
Push Button
- Yes
Number of Computers Controlled
- 4
Mouse Port Type
- USB
Keyboard Port Type
- USB
Console Ports
- 3.5mm headphone, RJ–45, USB A
Hot Keys
- Yes
DC-In Jack
- Yes
USB 2.0 Type-B Ports Quantity
- 4
Power Source
- DC
Storage temperature (T-T)
- -20 - 60 °C
LED indicators
- Yes
Operating relative humidity (H-H)
- 0 - 80%
Operating temperature (T-T)
- 0 - 50 °C
Package weight
- 1.07 kg
Built-in display
- No
Weight
- 899 g
Depth
- 80.6 mm
Width
- 200 mm
Height
- 25 mm
Harmonized System (HS) code
- 85176200
Package height
- 173 mm
Package depth
- 283 mm
Package width
- 62 mm
Housing material
- Metal, Plastic
Product colour
- Black
Brand
- ATEN
