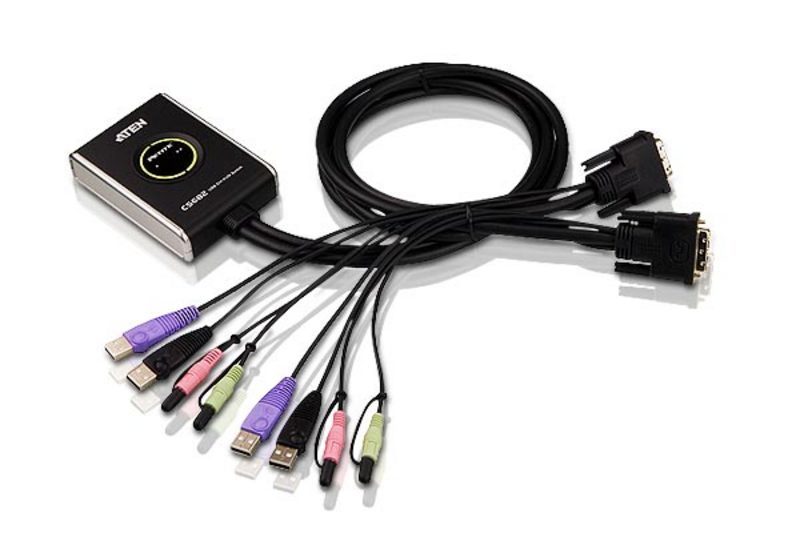

The CS682 takes a giant step forward from prior models in the Petite series, by offering DVI functionality, USB 2.0 peripheral sharing, and a rich bass experience for 2.1 surround systems. Another new feature of the CS682 is the implementation of a remote port selector. This means that you can now control port switching from the desktop while the switch itself can be placed in a convenient, out of the way, location.
1x CS682 2-Port USB 2.0 DVI KVM Switch
1x Remote Port Selector
1x User Instructions
1x CS682 2-Port USB 2.0 DVI KVM Switch
1x Remote Port Selector
1x User Instructions
Number of Computers Controlled
- 2
USB Connector Type
- USB Type-A, USB Type-B
Input Voltage
- 5 V
Video Port Type
- DVI-D
Headphone Outputs
- 3
HD Type
- WUXGA
Power Source
- DC
Console Ports
- 3.5mm headphone, 3.5mm mic, DVI-D, USB A
Keyboard Port Type
- USB
Mouse Port Type
- USB
Maximum Resolution
- 1920 x 1200 pixels
Quick Installation Guide
- Yes
Scan Interval
- 3,5,10,20 s
Video Bandwidth
- 60 Hz
Console USB Ports Quantity
- 2
Audio Connections
- Yes
number of Microphone Inputs
- 3
USB 2.0 Type-A Hub Ports Quantity
- 4
DVI-D Ports Quantity
- 2
Built-in display
- No
Product colour
- Black
Package width
- 70 mm
Package depth
- 163 mm
Package height
- 235 mm
Harmonized System (HS) code
- 85176200
Height
- 24 mm
Width
- 111.5 mm
Depth
- 78 mm
Weight
- 460 g
Power consumption (typical)
- 1.9 W
Package weight
- 590 g
Operating temperature (T-T)
- 0 - 50 °C
Operating relative humidity (H-H)
- 0 - 80%
LED indicators
- Yes
Storage temperature (T-T)
- -20 - 60 °C
Storage relative humidity (H-H)
- 0 - 80%
Rack Mounting
- No
Brand
- ATEN
