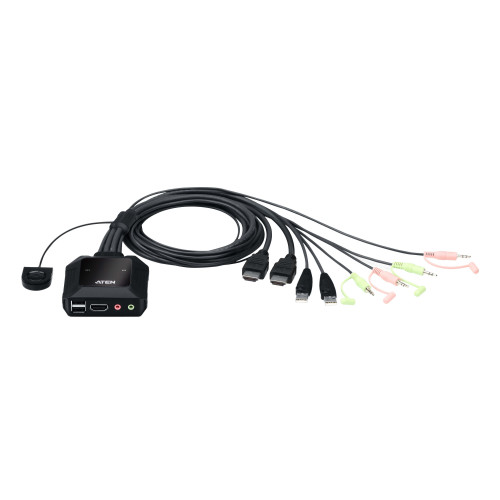

1x CS22H 2-Port USB 4K HDMI Cable KVM Switch
1x User Instructions
Console Ports
- 3.5mm headphone, 3.5mm mic, HDMI, USB A
Rack Mounting
- No
Maximum Resolution
- 4096 x 2160 pixels
Input Voltage
- 5 V
Video Port Type
- HDMI
HDM Ports Quantity
- 3
Headphone Outputs
- 3
HD Type
- 4K Ultra HD
Power Source
- DC
Storage relative humidity (H-H)
- 0 - 80%
Keyboard Port Type
- USB
Mouse Port Type
- USB
Number of Computers Controlled
- 2
Quick Installation Guide
- Yes
Video Bandwidth
- 60 Hz
Console USB Ports Quantity
- 2
Audio Connections
- Yes
number of Microphone Inputs
- 3
Depth
- 84.2 mm
Product colour
- Black
Housing material
- Plastic
Package width
- 55 mm
Package depth
- 155 mm
Package height
- 223 mm
Harmonized System (HS) code
- 85176200
Height
- 30.4 mm
Width
- 83.4 mm
Weight
- 340 g
Built-in display
- No
Power consumption (typical)
- 3.47 W
Package weight
- 420 g
Operating temperature (T-T)
- 0 - 50 °C
Operating relative humidity (H-H)
- 0 - 80%
LED indicators
- Yes
Storage temperature (T-T)
- -20 - 60 °C
Brand
- ATEN
