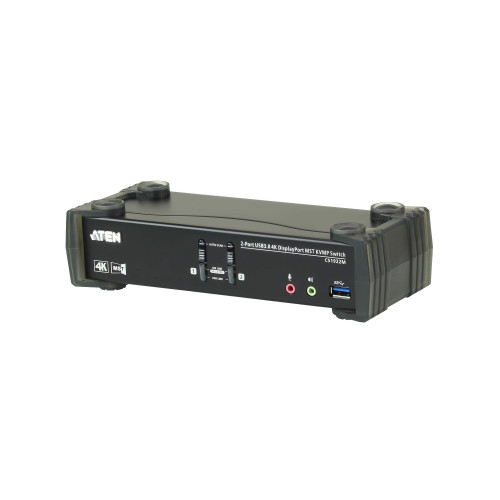

Incorporating the latest Multi-Stream Transport (MST) technology, the CS1922M 2-Port USB 3.0 4K DisplayPort MST KVMPâ„¢ Switch is the world's first DisplayPort KVM switch with a built-in MST hub. The CS1922M enables users to adopt two console displays from a single DisplayPort 1.2 video source, providing an extended desktop mode and splitter mode at resolutions up to 4K for multitasking across two displays while reducing bulky cable connections.
1x 2-Port USB 3.0 4K DisplayPort MST KVMPâ„¢ Switch
2x LIN5-20K1-K13G DisplayPort 1.2 Cables (1.5m/5ft)
2x LIN6-11C1-E12G USB Cables (USB 3.0-A to USB 3.0-B; 1.8m/6ft)
4x LIN5-0205-21DG/CD Audio Cables (1.8m/6ft)
1x LIN2-418K-E12G / 0AD8-8005-40MG Power Adapter
1x User Instructions
1x 2-Port USB 3.0 4K DisplayPort MST KVMPâ„¢ Switch
2x LIN5-20K1-K13G DisplayPort 1.2 Cables (1.5m/5ft)
2x LIN6-11C1-E12G USB Cables (USB 3.0-A to USB 3.0-B; 1.8m/6ft)
4x LIN5-0205-21DG/CD Audio Cables (1.8m/6ft)
1x LIN2-418K-E12G / 0AD8-8005-40MG Power Adapter
1x User Instructions
Push Button
- Yes
Headphone Outputs
- 4
HD Type
- 4K Ultra HD
Power Source
- DC
USB 2.0 Type-B Ports Quantity
- 2
DC-In Jack
- Yes
Hot Keys
- Yes
Console Ports
- 3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
Keyboard Port Type
- USB
Mouse Port Type
- USB
Number of Computers Controlled
- 2
Video Port Type
- DisplayPort
Quick Installation Guide
- Yes
Scan Interval
- 1,5,99 s
Video Bandwidth
- 60 Hz
DisplayPorts Quantity
- 2
Audio Connections
- Yes
Firmware Upgradeable
- Yes
number of Microphone Inputs
- 4
USB Hub
- Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A Hub Ports Quantity
- 2
Power consumption (typical)
- 4.09 W
Product colour
- Black
Housing material
- Metal, Plastic
Package width
- 100 mm
Package depth
- 283 mm
Package height
- 173 mm
Height
- 55.5 mm
Width
- 210 mm
Depth
- 88 mm
Weight
- 560 g
Built-in display
- No
Package weight
- 1.84 kg
Operating temperature (T-T)
- 0 - 50 °C
Operating relative humidity (H-H)
- 0 - 80%
LED indicators
- Yes
Storage temperature (T-T)
- -20 - 60 °C
Storage relative humidity (H-H)
- 0 - 80%
Maximum Resolution
- 4096 x 2160 pixels
USB Connector Type
- USB Type-A, USB Type-B
Input Voltage
- 5 V
Brand
- ATEN
