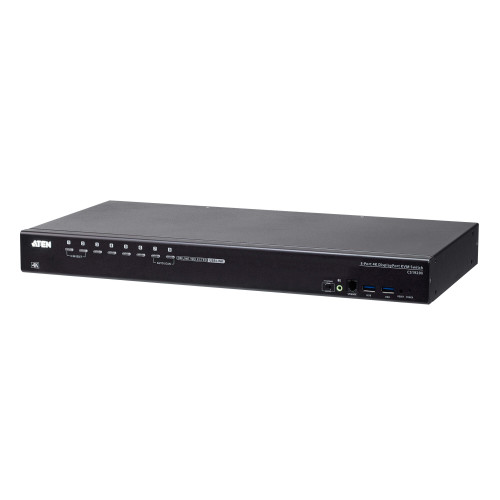

The ATEN CS19208 8-Port USB 3.0 4K DisplayPort KVM Switch can effectively access and control up to 8 DisplayPort computers from a single USB keyboard, USB mouse, and monitor console. With its dual interface console, users can choose between DisplayPort/HDMI video output supporting high video quality up to 4K DCI (4096 x 2160 @ 60Hz), presenting crystal-clear visuals.
1x CS19208 8-Port USB 3.0 4K DisplayPort KVM Switch with Rack Mounting Kit
2x LIN5-20K1-K13G DisplayPort 1.4 Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Audio Cables
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x 0X02-0017-000G Foot Pad Set (4 pcs)
1x 0AD8-8012-33MG + LIN2-418K-E12G Power Adapter
1x User Instructions
1x CS19208 8-Port USB 3.0 4K DisplayPort KVM Switch with Rack Mounting Kit
2x LIN5-20K1-K13G DisplayPort 1.4 Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Audio Cables
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x 0X02-0017-000G Foot Pad Set (4 pcs)
1x 0AD8-8012-33MG + LIN2-418K-E12G Power Adapter
1x User Instructions
Push Button
- Yes
Video Port Type
- DisplayPort
Headphone Outputs
- 9
HD Type
- 4K Ultra HD
DC-In Jack
- Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B Ports Quantity
- 8
Hot Keys
- Yes
Console Ports
- 3.5mm headphone, DisplayPort, HDMI, USB A
Keyboard Port Type
- USB
Mouse Port Type
- USB
Number of Computers Controlled
- 8
Input Voltage
- 12 V
Quick Installation Guide
- Yes
Scan Interval
- 1,5,255 s
Video Bandwidth
- 60 Hz
DisplayPorts Quantity
- 8
Console USB Ports Quantity
- 2
Audio Connections
- Yes
number of Microphone Inputs
- 1
USB Hub
- Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A Hub Ports Quantity
- 2
Built-in display
- No
Product colour
- Black
Housing material
- Metal
Package width
- 133 mm
Package depth
- 499 mm
Package height
- 324 mm
Height
- 44 mm
Width
- 432.4 mm
Depth
- 214.3 mm
Weight
- 3.75 kg
Power consumption (typical)
- 18.44 W
Package weight
- 4.83 kg
Operating temperature (T-T)
- 0 - 40 °C
Operating relative humidity (H-H)
- 0 - 80%
LED indicators
- Yes
Storage temperature (T-T)
- -20 - 60 °C
Storage relative humidity (H-H)
- 0 - 80%
Maximum Resolution
- 4096 x 2160 pixels
USB Connector Type
- USB Type-A, USB Type-B
Brand
- ATEN
