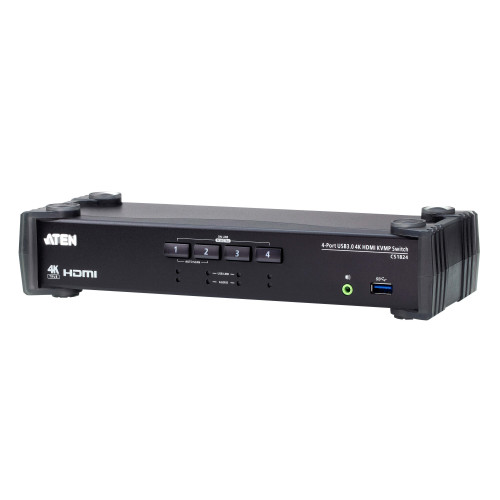

The ATEN CS1824 KVMPâ„¢ Switch offers effortless management of four HDMI interface computers from a single USB keyboard, mouse and HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), the CS1824 optimizes user experience of multitasking.
1x CS1824 4-Port USB 3.0 4K HDMI KVMPâ„¢ Switch
4x LIN6-19V1-V18G HDMI 2.0 Cables
4x LIN6-11C1-E12G USB 3.0 Cables
4x LIN5-0205-21CG Audio Cables
1x LIN2-418K-E12G Power Cord
1x 0AD8-8005-40MG Power Adapter
1x User Instructions
1x CS1824 4-Port USB 3.0 4K HDMI KVMPâ„¢ Switch
4x LIN6-19V1-V18G HDMI 2.0 Cables
4x LIN6-11C1-E12G USB 3.0 Cables
4x LIN5-0205-21CG Audio Cables
1x LIN2-418K-E12G Power Cord
1x 0AD8-8005-40MG Power Adapter
1x User Instructions
Mouse Port Type
- USB
HDM Ports Quantity
- 5
Headphone Outputs
- 6
HD Type
- 4K Ultra HD
HDMI Version
- 2.0
Power Source
- DC
DC-In Jack
- Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B Ports Quantity
- 4
HDCP
- Yes
Console Ports
- 3.5mm headphone, HDMI, USB A
Keyboard Port Type
- USB
Video Port Type
- HDMI
Number of Computers Controlled
- 4
Push Button
- Yes
Scan Interval
- 1,99 s
Video Bandwidth
- 60 Hz
Console USB Ports Quantity
- 4
Audio Connections
- Yes
Firmware Upgradeable
- Yes
USB Hub
- Yes
Serial Ports Quantity
- 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A Hub Ports Quantity
- 2
Power consumption (typical)
- 2.535 W
Product colour
- Black
Housing material
- Metal, Plastic
Package width
- 98 mm
Package depth
- 325 mm
Package height
- 210 mm
Height
- 55.5 mm
Width
- 88 mm
Depth
- 270 mm
Weight
- 2.24 kg
Built-in display
- No
Package weight
- 2.54 kg
Operating temperature (T-T)
- 0 - 40 °C
Operating relative humidity (H-H)
- 0 - 80%
LED indicators
- Yes
Storage temperature (T-T)
- -20 - 60 °C
Compliance Certificates
- RoHS
Maximum Resolution
- 4096 x 2160 pixels
USB Connector Type
- USB Type-A, USB Type-B
Input Voltage
- 5 V
Brand
- ATEN
