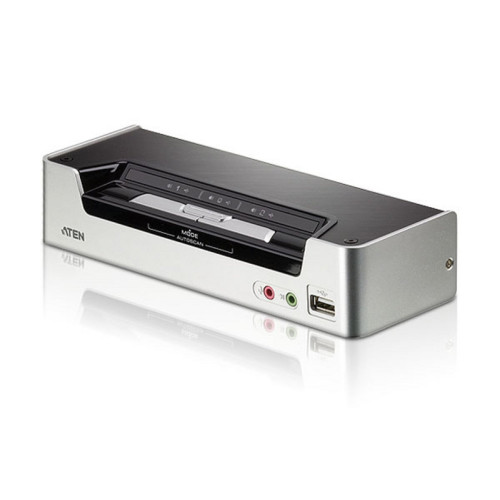

With its unique design and innovative features, the CubiQâ„¢ CS1792 USB 2.0 HDMI KVMPâ„¢ Switch provides both style and functionality for today's multimedia SOHO environment. Combining a 2-port switch with a 2-port USB 2.0 hub, the CS1792 provides seamless HDMI signal switching between 2 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console.
1x CS1792 USB 2.0 HDMI KVMPâ„¢ Switch
2x 2L-7D02UH HDMI KVM Cable Sets (1.8m)
1x LIN5-04A2-J13G Firmware Upgrade Cable
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
1x CS1792 USB 2.0 HDMI KVMPâ„¢ Switch
2x 2L-7D02UH HDMI KVM Cable Sets (1.8m)
1x LIN5-04A2-J13G Firmware Upgrade Cable
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
Keyboard Port Type
- USB
USB Connector Type
- USB Type-A, USB Type-B
Input Voltage
- 5.3 V
Video Port Type
- HDMI
HDM Ports Quantity
- 2
Headphone Outputs
- 4
HD Type
- WUXGA
Power Source
- DC
DC-In Jack
- Yes
Hot Keys
- Yes
Console Ports
- 3.5mm headphone, 3.5mm mic, HDMI, USB A
Maximum Resolution
- 1920 x 1200 pixels
Mouse Port Type
- USB
Number of Computers Controlled
- 2
Quick Installation Guide
- Yes
Scan Interval
- 1,5,99 s
Video Bandwidth
- 60 Hz
Console USB Ports Quantity
- 2
Audio Connections
- Yes
number of Microphone Inputs
- 4
USB 2.0 Type-A Hub Ports Quantity
- 2
USB Hub
- Yes
Power consumption (typical)
- 5.35 W
Product colour
- Black, Grey
Housing material
- Metal, Plastic
Package width
- 95 mm
Package depth
- 265 mm
Package height
- 220 mm
Height
- 44 mm
Width
- 206.3 mm
Depth
- 72.4 mm
Weight
- 1.04 kg
Built-in display
- No
Package weight
- 1.37 kg
Windows operating systems supported
- Yes
Mac operating systems supported
- Yes
Linux operating systems supported
- Yes
Operating temperature (T-T)
- 0 - 50 °C
Operating relative humidity (H-H)
- 0 - 80%
LED indicators
- Yes
Storage temperature (T-T)
- -20 - 60 °C
Storage relative humidity (H-H)
- 0 - 80%
Brand
- ATEN
