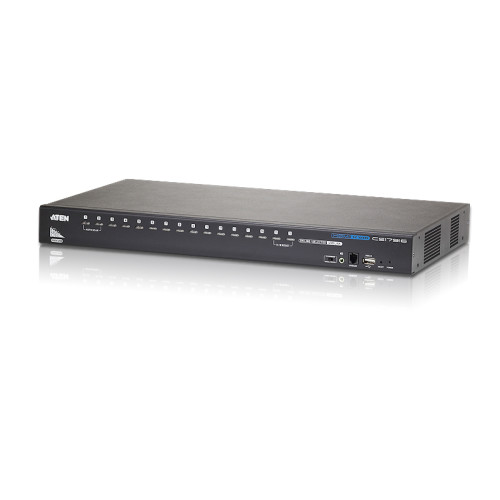

The CS17916 16-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 16 HDMI computers from a single USB keyboard, USB mouse, and monitor console.
1x CS17916 16-Port USB HDMI KVM Switch with Rack Mounting Kit
2x 2L-7D02UH Custom USB HDMI KVM Cable Sets (1.8m)
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x 0AD8-8005-40MG Power Adaptor
1x Foot Pad Set (4 pcs)
1x User Instructions
1x CS17916 16-Port USB HDMI KVM Switch with Rack Mounting Kit
2x 2L-7D02UH Custom USB HDMI KVM Cable Sets (1.8m)
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x 0AD8-8005-40MG Power Adaptor
1x Foot Pad Set (4 pcs)
1x User Instructions
Mouse Port Type
- USB
Video Port Type
- HDMI
HDM Ports Quantity
- 16
Headphone Outputs
- 17
HD Type
- WUXGA
Power Source
- DC
USB 2.0 Type-B Ports Quantity
- 16
DC-In Jack
- Yes
Console Ports
- 3.5mm headphone, 3.5mm mic, HDMI, USB A
Keyboard Port Type
- USB
Input Voltage
- 5 V
Number of Computers Controlled
- 16
Quick Installation Guide
- Yes
Scan Interval
- 1,5,255 s
Video Bandwidth
- 60 Hz
Audio Connections
- Yes
number of Microphone Inputs
- 1
USB 2.0 Type-A Hub Ports Quantity
- 2
USB Hub
- Yes
Built-in display
- No
Product colour
- Black
Housing material
- Metal
Package width
- 133 mm
Package depth
- 499 mm
Package height
- 324 mm
Height
- 44 mm
Width
- 432.4 mm
Depth
- 257.2 mm
Weight
- 5.1 kg
Power consumption (typical)
- 8.66 W
Package weight
- 5.68 kg
Operating temperature (T-T)
- 0 - 50 °C
Operating relative humidity (H-H)
- 0 - 80%
LED indicators
- Yes
Storage temperature (T-T)
- -20 - 60 °C
Storage relative humidity (H-H)
- 0 - 80%
Maximum Resolution
- 1920 x 1200 pixels
Brand
- ATEN
