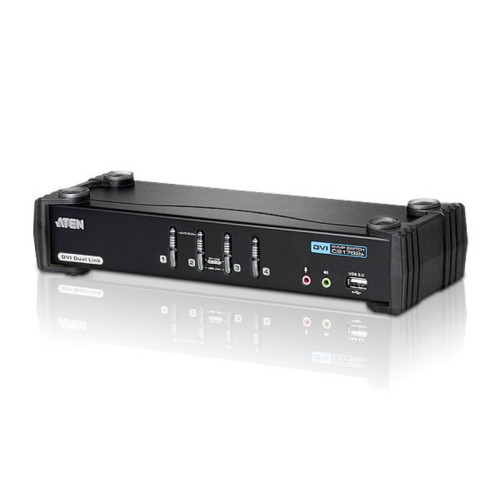

The CS1784A USB DVI Dual Link KVMPâ„¢ Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 4-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support. Moreover it carries advanced features, such as nVidia 3D Vision ready 120Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.
1 x CS1784A USB DVI Dual Link KVMPâ„¢ Switch
4 x 2L-7D02UD DVI-D KVM Cable Sets
1 x 0AD8-1605-24M1 Power Adapter
1 x User Instructions
1 x CS1784A USB DVI Dual Link KVMPâ„¢ Switch
4 x 2L-7D02UD DVI-D KVM Cable Sets
1 x 0AD8-1605-24M1 Power Adapter
1 x User Instructions
Push Button
- Yes
Headphone Outputs
- 6
HD Type
- WQXGA
Power Source
- DC
USB 2.0 Type-B Ports Quantity
- 4
DC-In Jack
- Yes
Hot Keys
- Yes
Console Ports
- 3.5mm headphone, 3.5mm mic, DVI-I, USB A
Keyboard Port Type
- USB
Mouse Port Type
- USB
Number of Computers Controlled
- 4
Video Port Type
- DVI-I
Quick Installation Guide
- Yes
Scan Interval
- 1,5,99 s
Video Bandwidth
- 60 Hz
Console USB Ports Quantity
- 2
Audio Connections
- Yes
number of Microphone Inputs
- 6
DVI-I Ports Quantity
- 4
USB 2.0 Type-A Hub Ports Quantity
- 2
USB Hub
- Yes
Power consumption (typical)
- 5.91 W
Product colour
- Black
Housing material
- Metal
Package width
- 98 mm
Package depth
- 325 mm
Package height
- 210 mm
Height
- 55.5 mm
Width
- 270 mm
Depth
- 88 mm
Weight
- 2.32 kg
Built-in display
- No
Package weight
- 2.56 kg
Operating temperature (T-T)
- 0 - 50 °C
Operating relative humidity (H-H)
- 0 - 80%
LED indicators
- Yes
Storage temperature (T-T)
- -20 - 60 °C
Storage relative humidity (H-H)
- 0 - 80%
Maximum Resolution
- 2560 x 1600 pixels
USB Connector Type
- USB Type-A, USB Type-B
Input Voltage
- 5.3 V
Brand
- ATEN
