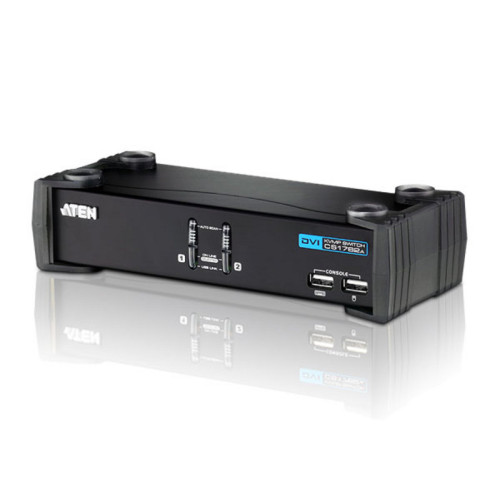

The CubiQâ„¢ CS1762A USB 2.0 DVI KVMPâ„¢ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 2 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).
1 x CS1762A USB 2.0 DVI KVMPâ„¢ Switch
2 x 2L-7D02U USB DVI-D Single Link KVM Cables
1 x 0AD8-1605-24M1 Power Adapter
1 x User Instructions
1 x CS1762A USB 2.0 DVI KVMPâ„¢ Switch
2 x 2L-7D02U USB DVI-D Single Link KVM Cables
1 x 0AD8-1605-24M1 Power Adapter
1 x User Instructions
Number of Computers Controlled
- 2
Video Port Type
- DVI-I
Headphone Outputs
- 3
HD Type
- WUXGA
Power Source
- DC
USB 2.0 Type-B Ports Quantity
- 2
DC-In Jack
- Yes
Hot Keys
- Yes
Console Ports
- 3.5mm headphone, 3.5mm mic, DVI-I, USB A
Keyboard Port Type
- USB
Mouse Port Type
- USB
Input Voltage
- 5.3 V
Push Button
- Yes
Quick Installation Guide
- Yes
Scan Interval
- 1,99 s
Video Bandwidth
- 60 Hz
Console USB Ports Quantity
- 2
Audio Connections
- Yes
number of Microphone Inputs
- 3
DVI-I Ports Quantity
- 2
DDC2B Support
- Yes
Built-in display
- No
Product colour
- Black
Housing material
- Metal
Package width
- 100 mm
Package depth
- 283 mm
Package height
- 173 mm
Height
- 55.5 mm
Width
- 210 mm
Depth
- 88 mm
Weight
- 1.38 kg
Power consumption (typical)
- 3.78 W
Package weight
- 1.63 kg
Operating temperature (T-T)
- 0 - 50 °C
Operating relative humidity (H-H)
- 0 - 80%
LED indicators
- Yes
Storage temperature (T-T)
- -20 - 60 °C
Storage relative humidity (H-H)
- 0 - 80%
Maximum Resolution
- 1920 x 1200 pixels
USB Connector Type
- USB Type-A, USB Type-B
Brand
- ATEN
