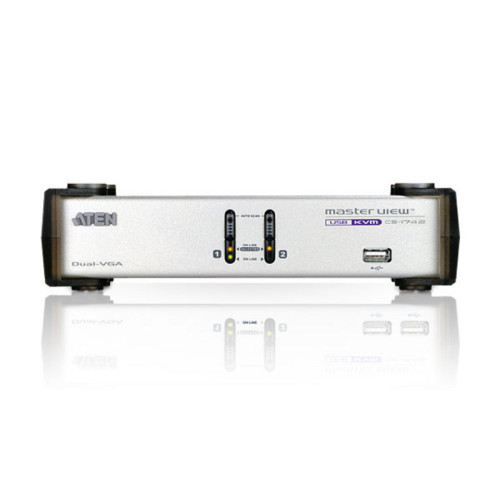

CS1742

SKU: ATEN084
MPN: CS1742C-AT
Weight: 0.82kg
£125.62 Ex VAT
Manufacturer Brand Image
USB, VGA, 2048 x 1536px, DDC2B, 1-99s, DC 5V, 1.25W, 820g
CS1742 2 Port KVM Switch integrates functions of video signal dual output and USB KVM switches. It allows a computer with dual-screen support to pair with two VGA/SVGA/Multisync displays via a USB keyboard and mouse. Furthermore, CS1742 provides 2 USB ports, allowing each server to share any USB peripheral device that is connected to this HUB.

Features:
-Allows one USB keyboard, USB mouse, speakers, microphone and two displays to control two dual display computers
-2 port USB Hub built in
-Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
-With speaker and microphone support
-Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
-Buzzer On/Off via hotkey
-Keyboard and mouse emulation for error free booting
-Computer selection via front panel pushbuttons and hotkeys
-Superior video quality - up to 2048 x 1536; DDC2B
-Firmware upgradeable
-OS Support:Windows 2000, Windows XP, Windows Vista, LINUX, Mac, Sun and FreeBSD
-SUN/Mac keyboard support and emulation*

*1.PC keyboard combinations emulate SUN/Mac keyboards.
*2.SUN/Mac keyboards only work with their own computers.

Package Contents
1x 2-Port USB Dual-View KVMPâ„¢ Switch
2x Custom KVM Cable (VGA, USB; 1.8m/6ft)
2x Custom KVM Cable (VGA, Audio; 1.8m/6ft)
1x Firmware Upgrade Cable
1x User Instructions
Number of Computers Controlled
  • 2
USB Connector Type
  • USB Type-A
Input Voltage
  • 5 V
Video Port Type
  • VGA
VGA (D-Sub) Ports Quantity
  • 6
Headphone Outputs
  • 1
Power Source
  • DC
DC-In Jack
  • Yes
Hot Keys
  • Yes
Console Ports
  • 3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
Keyboard Port Type
  • USB
Mouse Port Type
  • USB
USB 2.0 Ports Quantity
  • 4
Push Button
  • Yes
Scan Interval
  • 1,99 s
Other Operating Systems SUpported
  • Yes
Console USB Ports Quantity
  • 2
Audio Connections
  • Yes
Firmware Upgradeable
  • Yes
number of Microphone Inputs
  • 1
On Screen Display (OSD)
  • No
USB Hub
  • Yes
DDC2B Support
  • Yes
Windows operating systems supported
  • Yes
Product colour
  • Silver
Housing material
  • Metal
Harmonized System (HS) code
  • 85176200
Height
  • 55.5 mm
Width
  • 210 mm
Depth
  • 88 mm
Weight
  • 820 g
Built-in display
  • No
USB version
  • 2.0
Power consumption (typical)
  • 1.25 W
Mac operating systems supported
  • Yes
Linux operating systems supported
  • Yes
Operating temperature (T-T)
  • 0 - 50 °C
Operating relative humidity (H-H)
  • 0 - 80%
Cables included
  • KVM
LED indicators
  • Yes
Storage temperature (T-T)
  • -20 - 60 °C
Rack Mounting
  • No
Compliance Certificates
  • RoHS
Maximum Resolution
  • 2048 x 1536 pixels
Brand
  • ATEN
