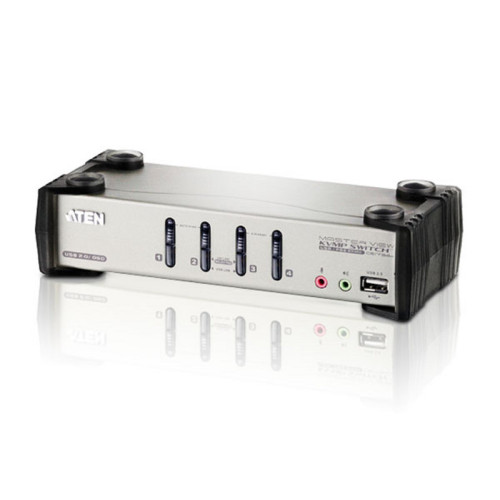

The CS1734B is 4-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access four computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.
1x CS1734B 4-Port USB 2.0 KVMPâ„¢ Switch
2x 2L-5301U USB KVM Cables (1.2m)
2x 2L-5302U USB KVM Cables (1.8m)
2x OSD/Hotkey Stickers
1x LIN5-04A2-J13G Firmware Upgrade Cable
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
1x CS1734B 4-Port USB 2.0 KVMPâ„¢ Switch
2x 2L-5301U USB KVM Cables (1.2m)
2x 2L-5302U USB KVM Cables (1.8m)
2x OSD/Hotkey Stickers
1x LIN5-04A2-J13G Firmware Upgrade Cable
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
Scan Interval
- 1,255 s
Headphone Outputs
- 6
HD Type
- QXGA
Power Source
- DC
Hot Keys
- Yes
Console Ports
- 3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
Keyboard Port Type
- USB, PS/2
Mouse Port Type
- USB, PS/2
Number of Computers Controlled
- 4
Push Button
- Yes
VGA (D-Sub) Ports Quantity
- 1
Video Bandwidth
- 60 Hz
Console USB Ports Quantity
- 2
Audio Connections
- Yes
Firmware Upgradeable
- Yes
number of Microphone Inputs
- 6
On Screen Display (OSD)
- Yes
USB 2.0 Type-A Hub Ports Quantity
- 2
USB Hub
- Yes
DDC2B Support
- Yes
Built-in display
- No
Product colour
- Black, Metallic
Housing material
- Metal
Package width
- 100 mm
Package depth
- 283 mm
Package height
- 173 mm
Height
- 55.5 mm
Width
- 88 mm
Depth
- 210 mm
Weight
- 1.95 kg
Power consumption (typical)
- 1.02 W
Package weight
- 2.09 kg
Operating temperature (T-T)
- 0 - 50 °C
Operating relative humidity (H-H)
- 0 - 80%
Cables included
- KVM, USB
Storage temperature (T-T)
- -20 - 60 °C
Maximum Resolution
- 2048 x 1536 pixels
Input Voltage
- 5 V
Video Port Type
- VGA
Brand
- ATEN
