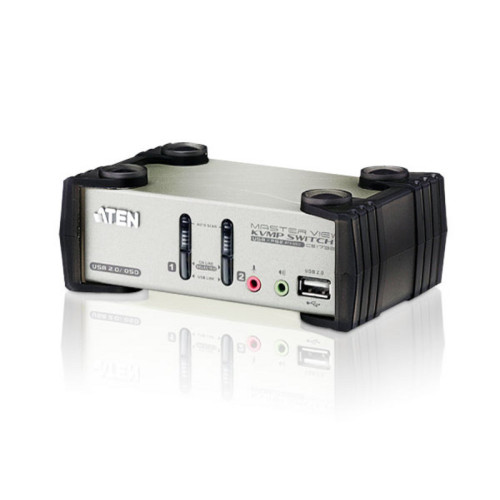

The CS1732B is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access two computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.
1 x CS1732B 2-Port USB 2.0 KVMPâ„¢ Switch
2 x 2L-5301U USB KVM Cables (1.2m)
1 x LIN5-04A2-J13G Firmware Upgrade Cable
1 x 0AD8-1605-24M1 Power Adapter
2 x OSD/Hotkey Stickers
1 x User Instructions
1 x CS1732B 2-Port USB 2.0 KVMPâ„¢ Switch
2 x 2L-5301U USB KVM Cables (1.2m)
1 x LIN5-04A2-J13G Firmware Upgrade Cable
1 x 0AD8-1605-24M1 Power Adapter
2 x OSD/Hotkey Stickers
1 x User Instructions
Push Button
- Yes
Video Port Type
- VGA
Headphone Outputs
- 4
HD Type
- QXGA
Power Source
- DC
DC-In Jack
- Yes
Hot Keys
- Yes
Console Ports
- 3.5mm headphone, 3.5mm mic
Keyboard Port Type
- USB, PS/2
Mouse Port Type
- USB, PS/2
Number of Computers Controlled
- 2
Input Voltage
- 5.3 V
Quick Installation Guide
- Yes
Scan Interval
- 1,255 s
Video Bandwidth
- 60 Hz
Audio Connections
- Yes
Firmware Upgradeable
- Yes
number of Microphone Inputs
- 4
On Screen Display (OSD)
- Yes
USB 2.0 Type-A Hub Ports Quantity
- 2
USB Hub
- Yes
DDC2B Support
- Yes
Power consumption (typical)
- 2.5 W
Product colour
- Black, Metallic
Housing material
- Metal
Package width
- 62 mm
Package depth
- 283 mm
Package height
- 173 mm
Height
- 55.5 mm
Width
- 140 mm
Depth
- 88 mm
Weight
- 1.15 kg
Cable length
- 1.2 m
Package weight
- 1.34 kg
Windows operating systems supported
- Yes
Mac operating systems supported
- Yes
Operating temperature (T-T)
- 0 - 50 °C
Operating relative humidity (H-H)
- 0 - 80%
Cables included
- KVM
LED indicators
- Yes
Storage temperature (T-T)
- -20 - 60 °C
Maximum Resolution
- 2048 x 1536 pixels
Brand
- ATEN
