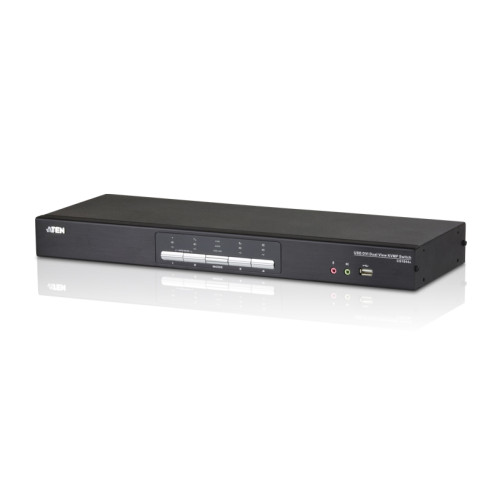

The CS1644A 4-Port USB DVI Dual View KVMPâ„¢ Switch is a multi-application device that integrates a 4-port KVM switch with 2-port USB hub. The newest version now supports Quad-View functionality with two Dual View KVM Switches connected.
1 x CS1644A 4-Port USB DVI Dual View KVMPâ„¢ Switch
8 x (4 x 2L-7D02UD- 4 x LIN5-26W1-W11G) Custom DVI-D Dual Link Cable Sets (1.8m)
1 x 0AD8-1605-24M1 Power Adapter
1 x User Instructions
1 x CS1644A 4-Port USB DVI Dual View KVMPâ„¢ Switch
8 x (4 x 2L-7D02UD- 4 x LIN5-26W1-W11G) Custom DVI-D Dual Link Cable Sets (1.8m)
1 x 0AD8-1605-24M1 Power Adapter
1 x User Instructions
Mouse Port Type
- USB
USB Connector Type
- USB Type-A
Input Voltage
- 5.3 V
Video Port Type
- DVI-I
Headphone Outputs
- 4
HD Type
- WQXGA
Power Source
- DC
DC-In Jack
- Yes
HDCP
- Yes
Hot Keys
- Yes
Console Ports
- 3.5mm headphone, 3.5mm mic, DVI-I, USB A
Keyboard Port Type
- USB
Maximum Resolution
- 2560 x 1600 pixels
Number of Computers Controlled
- 4
Push Button
- Yes
Scan Interval
- 1,99 s
Video Bandwidth
- 60 Hz
Other Operating Systems SUpported
- FreeBSD
Rack Capacity
- 1U
Console USB Ports Quantity
- 2
Audio Connections
- Yes
number of Microphone Inputs
- 4
DVI-I Ports Quantity
- 10
Package weight
- 5.5 kg
Product colour
- Black
Housing material
- Metal, Plastic
Package width
- 208 mm
Package depth
- 560 mm
Package height
- 240 mm
Height
- 44 mm
Width
- 437.2 mm
Depth
- 159.8 mm
Weight
- 4.5 kg
Built-in display
- No
Power consumption (typical)
- 12.19 W
Windows operating systems supported
- Yes
Mac operating systems supported
- Yes
Linux operating systems supported
- Yes
Operating temperature (T-T)
- 0 - 50 °C
Operating relative humidity (H-H)
- 0 - 80%
Cables included
- KVM
Storage temperature (T-T)
- -20 - 60 °C
Rack Mounting
- Yes
Ethernet LAN (RJ-45) Ports
- 1
Compliance Certificates
- RoHS
Brand
- ATEN
