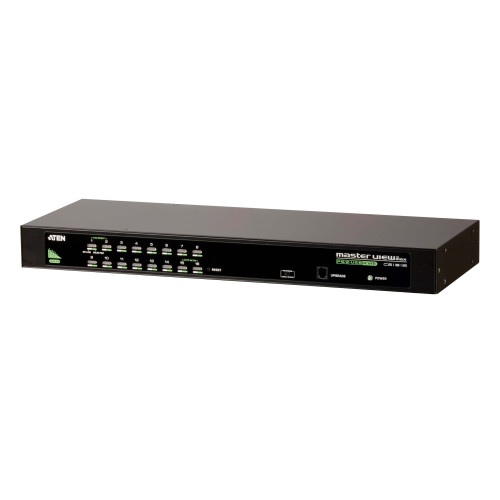

The CS1316 KVM switch allows access and control up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and computers.
1x CS1316 KVM Switch with Rack Mount Kit
1x LIN5-27X6-U21G Console cable
1x Firmware Upgrade cable
1x Foot Pad set (4 pads)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
1x CS1316 KVM Switch with Rack Mount Kit
1x LIN5-27X6-U21G Console cable
1x Firmware Upgrade cable
1x Foot Pad set (4 pads)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
Number of Computers Controlled
- 256
Maximum Resolution
- 2048 x 1536 pixels
AC Adapter Included
- Yes
Input Voltage
- 5.3 V
Video Port Type
- VGA
HD Type
- QXGA
Power Source
- DC
Hot Keys
- Yes
Console Ports
- VGA (D-Sub)
Keyboard Port Type
- USB, PS/2
Mouse Port Type
- USB, PS/2
Rack Mounting
- Yes
Push Button
- Yes
Quick Installation Guide
- Yes
Scan Interval
- 1,255 s
Rack Capacity
- 1U
Firmware Upgradeable
- Yes
On Screen Display (OSD)
- Yes
Cascadable
- Yes
DDC2B Support
- Yes
Hot-Plug Support
- Yes
Power consumption (typical)
- 6.5 W
Product colour
- Black
Housing material
- Metal
Package width
- 116 mm
Package depth
- 540 mm
Package height
- 233 mm
Height
- 44 mm
Width
- 437.2 mm
Depth
- 161.3 mm
Weight
- 2.5 kg
Built-in display
- No
Package weight
- 2.87 kg
Windows operating systems supported
- Yes
Mac operating systems supported
- Yes
Linux operating systems supported
- Yes
Operating temperature (T-T)
- 0 - 50 °C
Operating relative humidity (H-H)
- 0 - 80%
Cables included
- KVM
LED indicators
- Yes
Storage temperature (T-T)
- -20 - 60 °C
Brand
- ATEN
