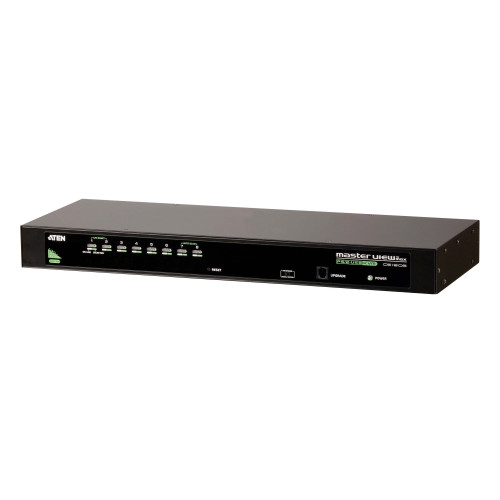

The CS1308 is a 8-Port USB-PS/2 KVM switch (Dual Interface). You're able to control up to 64 Computers from a single console (keyboard, mouse, and monitor).
8 additional switches can be cascaded (2-Level) that's why the total number of connected computers can be up to 64 computers, that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and Computer/PC/Server (Dual Interface.
1x CS1308 KVM Switch with Rack Mount Kit
1x LIN5-27X6-U21G Console cable
1x Firmware Upgrade cable
1x Foot Pad set (4 pads)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
8 additional switches can be cascaded (2-Level) that's why the total number of connected computers can be up to 64 computers, that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and Computer/PC/Server (Dual Interface.
1x CS1308 KVM Switch with Rack Mount Kit
1x LIN5-27X6-U21G Console cable
1x Firmware Upgrade cable
1x Foot Pad set (4 pads)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
Keyboard Port Type
- USB, PS/2
Maximum Resolution
- 2048 x 1536 pixels
AC Adapter Included
- Yes
Input Voltage
- 5.3 V
Video Port Type
- VGA
VGA (D-Sub) Ports Quantity
- 9
HD Type
- QXGA
Power Source
- DC
DC-In Jack
- Yes
Hot Keys
- Yes
Console Ports
- VGA (D-Sub)
Compliance Certificates
- RoHS
Mouse Port Type
- USB, PS/2
Number of Computers Controlled
- 64
Push Button
- Yes
Quick Installation Guide
- Yes
Scan Interval
- 1,255 s
Rack Capacity
- 1U
Firmware Upgradeable
- Yes
Rack Mount Kit
- Yes
Cascadable
- Yes
Built-in display
- No
Product colour
- Black
Housing material
- Metal
Package width
- 116 mm
Package depth
- 540 mm
Package height
- 233 mm
Height
- 44 mm
Width
- 161.3 mm
Depth
- 437.2 mm
Weight
- 1.89 kg
Power consumption (typical)
- 5 W
Package weight
- 2.69 kg
Windows operating systems supported
- Yes
Mac operating systems supported
- Yes
Linux operating systems supported
- Yes
Operating temperature (T-T)
- 0 - 50 °C
Operating relative humidity (H-H)
- 0 - 80%
Storage temperature (T-T)
- -20 - 60 °C
Rack Mounting
- Yes
Brand
- ATEN
