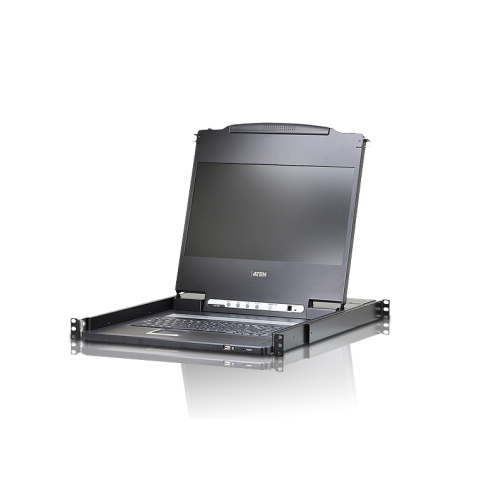

The CL6700MW DVI Full HD LCD Console is a single rail KVM console featuring a 17.3’’ LED-backlit high-definition widescreen with an integrated keyboard and touchpad in a 1U rack-mountable sliding housing. The CL6700MW’s console provides front end access to compatible KVM switches utilizing space with a module that closes fl at and slides into the rack. The single rail design allows the LCD monitor, keyboard and touchpad to operate independently of each other. Multiple video ports allow the console to connect one of three types of video sources: VGA, DVI, or HDMI - for the console and CPU connection. For added convenience, the full HD console provides two HDMI ports that allow for connecting a high-defi nition monitor to the console port, and/or an HDMI compatible switch to the KVM port.
USB 2.0 Type-B Ports Quantity
- 1
Maximum Resolution
- 1920 x 1080 pixels
Display
- LCD
USB Connector Type
- USB Type-A, USB Type-B
Input Voltage
- 100 - 240 V
Display Diagonal
- 43.9 cm (17.3")
Video Port Type
- DVI-D/HDMI/VGA
HDM Ports Quantity
- 2
VGA (D-Sub) Ports Quantity
- 2
HD Type
- Full HD
Power Source
- AC
AC Input Frequency
- 50 - 60 Hz
Console Ports
- 3.5mm headphone, DVI-I, USB A, VGA (D-Sub)
Input Current
- 1 A
Keyboard Port Type
- USB
Mouse Port Type
- USB
Number of Computers Controlled
- 1
Video Bandwidth
- 60 Hz
Rack Capacity
- 1U
DDC2B Support
- Yes
DVI-D Ports Quantity
- 2
Hot-Plug Support
- Yes
Power consumption (typical)
- 19.4 W
Product colour
- Black
Housing material
- Metal
Package width
- 668 mm
Package depth
- 718 mm
Package height
- 135 mm
Height
- 44 mm
Width
- 589.2 mm
Depth
- 480 mm
Weight
- 11.6 kg
Built-in display
- Yes
Package weight
- 14.7 kg
Windows operating systems supported
- Yes
Mac operating systems supported
- Yes
Linux operating systems supported
- Yes
Operating temperature (T-T)
- 0 - 40 °C
Operating relative humidity (H-H)
- 0 - 80%
LED indicators
- Yes
Storage temperature (T-T)
- -20 - 60 °C
Rack Mounting
- Yes
Brand
- ATEN
