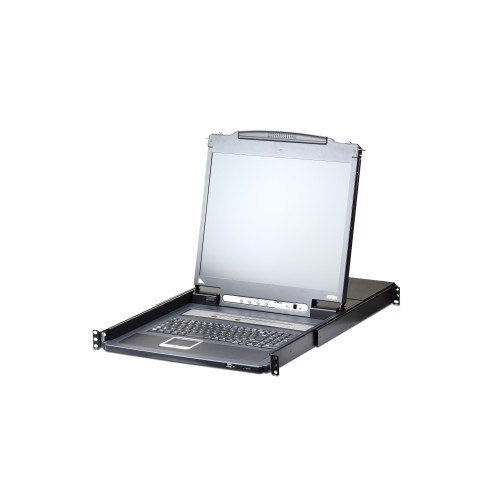

The CL5708I Slideawayâ„¢ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708I can control up to 8 computers. As many as 15 additional KVM switches can be daisychained to the CL5708I, so that up to 128 computers can all be controlled from a single KVM console.
TEST NOW!
1x CL5708I LCD KVM over IP Switch with standard Rack Mount Kit
2x 2L-5202U Custom KVM Cables (VGA, USB; 1.8 m/6 ft)
1x LIN5-27X6-U22G Custom Console Cable (VGA, USB, PS/2; 27 cm/0.88 ft)
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x User Instructions
TEST NOW!
1x CL5708I LCD KVM over IP Switch with standard Rack Mount Kit
2x 2L-5202U Custom KVM Cables (VGA, USB; 1.8 m/6 ft)
1x LIN5-27X6-U22G Custom Console Cable (VGA, USB, PS/2; 27 cm/0.88 ft)
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x User Instructions
Power Source
- AC
Ethernet LAN (RJ-45) Ports
- 1
Maximum Resolution
- 1920 x 1200 pixels
Display
- LCD
USB Connector Type
- USB Type-A
Display Diagonal
- 43.2 cm (17")
Video Port Type
- VGA
VGA (D-Sub) Ports Quantity
- 8
HD Type
- WUXGA
Rack Mounting
- Yes
Console Ports
- VGA (D-Sub)
Keyboard Port Type
- USB
Mouse Port Type
- USB
Number of Computers Controlled
- 1
Quick Installation Guide
- Yes
Scan Interval
- 1,255 s
Video Bandwidth
- 60 Hz
USB 2.0 Type-A Hub Ports Quantity
- 2
Weight
- 13.8 kg
Product colour
- Black
Housing material
- Metal, Plastic
Package width
- 668 mm
Package depth
- 718 mm
Package height
- 135 mm
Height
- 44 mm
Width
- 642.7 mm
Depth
- 480 mm
Built-in display
- Yes
Ethernet LAN
- Yes
Package weight
- 16.7 kg
Operating temperature (T-T)
- 0 - 50 °C
Operating relative humidity (H-H)
- 0 - 80%
LED indicators
- Yes
Storage temperature (T-T)
- -20 - 60 °C
Storage relative humidity (H-H)
- 0 - 80%
Brand
- ATEN
