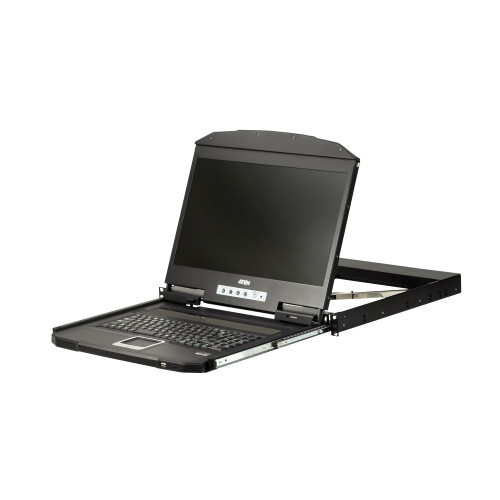

The CL3100 USB VGA LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3100 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.
1x CL3100 LCD KVM Console with Standard Rack Mount Kit
1x LIN5-23X5-X1BG USB VGA KVM Cable (VGA, USB, Audio; 1.8 m/6 ft)
1x LIN5-04A2-J15G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x User Instructions
1x CL3100 LCD KVM Console with Standard Rack Mount Kit
1x LIN5-23X5-X1BG USB VGA KVM Cable (VGA, USB, Audio; 1.8 m/6 ft)
1x LIN5-04A2-J15G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x User Instructions
Keyboard Port Type
- USB
Display Diagonal
- 47 cm (18.5")
Aspect Ratio
- 16:9
Display Resolution
- 1366 x 768 pixels
Video Port Type
- VGA
Response Time
- 5 ms
Contrast Ratio (Typical)
- 1000:1
Display Brightness
- 250 cd/m²
USB 2.0 Type-A Ports Quantity
- 3
Hot Keys
- Yes
Input Current
- 1 A
AC Adapter Included
- Yes
Mouse Port Type
- USB
Number of Computers Controlled
- 1
Rack Capacity
- 1U
Display Type
- LCD
On Screen Display (OSD)
- Yes
Pixel Pitch
- 0.3 x 0.3 mm
Display Number of Colours
- 16.78 million colours
Viewing Angle, Horizontal
- 170°
Viewing Angle, Vertical
- 160°
Power consumption (typical)
- 14.1 W
Material
- Metal, Plastic
Product colour
- Black
Package width
- 612 mm
Package depth
- 658 mm
Package height
- 135 mm
Height
- 42.8 mm
Width
- 477 mm
Depth
- 480.6 mm
Weight
- 10.2 kg
Package weight
- 12.1 kg
Operating temperature (T-T)
- 0 - 40 °C
Operating relative humidity (H-H)
- 0 - 80%
Cables included
- AC, KVM
LED indicators
- Yes
Storage temperature (T-T)
- -20 - 60 °C
Rack Mounting
- Yes
Maximum Resolution
- 1920 x 1200 pixels
Display
- TFT-LCD
Brand
- ATEN
