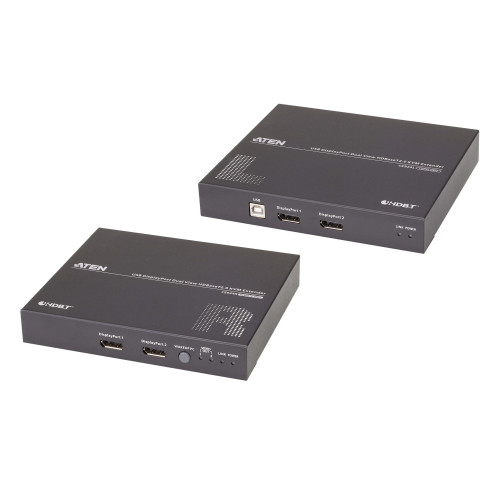

The ATEN CE924 USB DisplayPort Dual View HDBaseTâ„¢ 2.0 KVM Extender integrates the latest HDBaseTâ„¢ 2.0 technologies to deliver 4K video, stereo audio, USB, and RS-232 signals. The HDBaseTâ„¢ 2.0 guarantees the most reliable transmission on the market as well as it provides long-reach capability that extends Full HD 1080P signals up to 150 meters. In addition, CE924 supports single 4K display or dual 1080p display for DisplayPort video output resolution up to 100m by using a single Cat6 / 2L-2910 Cat 6 cable.
With an easy cable installation supporting various signals, the CE924 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
1x CE924L USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (Local Unit)
1x CE924R USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (Remote Unit)
2x DisplayPort cables
1x pink audio jack cable set
1x green audio jack cable set
1x USB Type-A to Type-B cable
2x power adapters
2x mounting kits
1x user instructions
With an easy cable installation supporting various signals, the CE924 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
1x CE924L USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (Local Unit)
1x CE924R USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (Remote Unit)
2x DisplayPort cables
1x pink audio jack cable set
1x green audio jack cable set
1x USB Type-A to Type-B cable
2x power adapters
2x mounting kits
1x user instructions
AC Adapter Included
- Yes
RJ-45 Ports Quantity (Transmitter)
- 1
RJ-45 Ports Quantity (Receiver)
- 1
Receiver Local Video Port Type
- DisplayPort
Transmitter Video Port Type
- DisplayPort
USB Port Type
- USB Type-A
Maximum Digital Resolution
- 4096 x 2160 pixels
Receiver Deoth
- 17.4 cm
Receiver Height
- 2.88 cm
Receiver Weight
- 850 g
Receiver Width
- 15.6 cm
Transmitter Depth
- 17.4 cm
Transmitter Height
- 2.88 cm
Transmitter Weight
- 820 g
Transmitter Width
- 15.4 cm
Storage relative humidity (H-H)
- 0 - 80%
Storage temperature (T-T)
- -20 - 60 °C
LED indicators
- Yes
Connectivity technology
- Wired
Cables included
- DisplayPort, USB Type-A to USB Type-B
Operating relative humidity (H-H)
- 0 - 80%
Operating temperature (T-T)
- 0 - 40 °C
Package weight
- 4.04 kg
Package height
- 233 mm
Package depth
- 540 mm
Package width
- 131 mm
Product colour
- Black
Material
- Metal
Brand
- ATEN
