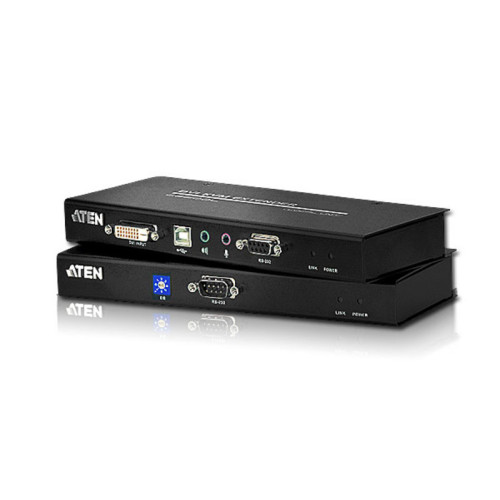

The CE600 is a DVI and USB based KVM Extender with RS-232 serial functionality. It allows access to a computer system from a remote console (USB keyboard, monitor, and mouse). Because it allows access to a computer system from a remote console, the CE600 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – away from the dust and dirt of the factory floor, or the harsh environmental infl uence of a construction site, for example. This allows users to deploy system equipment over large distances.
1x CE600L DVI KVM Extender (Local Unit)
1x CE600R DVI KVM Extender (Remote Unit)
1x 2L-7D02U 1.8 m USB DVI-D Single Link KVM Cable Set
2x 0AD8-1605-24M1 Power Adapters
1x Mounting Kit
1x User Instructions
1x CE600L DVI KVM Extender (Local Unit)
1x CE600R DVI KVM Extender (Remote Unit)
1x 2L-7D02U 1.8 m USB DVI-D Single Link KVM Cable Set
2x 0AD8-1605-24M1 Power Adapters
1x Mounting Kit
1x User Instructions
Receiver Deoth
- 8.5 cm
Cable Types Supported
- Cat5, Cat5e
Transmitter Width
- 20.2 cm
Transmitter Weight
- 480 g
Transmitter Height
- 2.5 cm
Transmitter Depth
- 8.54 cm
Receiver Width
- 20.2 cm
Receiver Weight
- 480 g
Receiver Height
- 2.5 cm
Quick Installation Guide
- Yes
Maximum Digital Resolution
- 1920 x 1200 pixels
Transmitter Local Keyboard/Mouse Port Type
- USB
Transmitter Video Port Type
- DVI-D
Receiver Local Keyboard/Mouse Port Type
- USB
Receiver Local Video Port Type
- DVI-D
RJ-45 Ports Quantity (Receiver)
- 2
RJ-45 Ports Quantity (Transmitter)
- 2
Supported Resolutions
- 1920 x 1200, 1024 x 768
Operating relative humidity (H-H)
- 0 - 80%
Material
- Metal
Product colour
- Black
Package width
- 98 mm
Package depth
- 325 mm
Package height
- 210 mm
Weight
- 1.79 kg
Package weight
- 1.84 kg
Operating temperature (T-T)
- 0 - 50 °C
Connectivity technology
- Wired
Maximum transfer distance
- 60 m
LED indicators
- Link, Power
Storage temperature (T-T)
- -20 - 60 °C
Storage relative humidity (H-H)
- 0 - 80%
Rack Mounting
- Yes
AC Adapter Output Voltage
- 5.3 V
