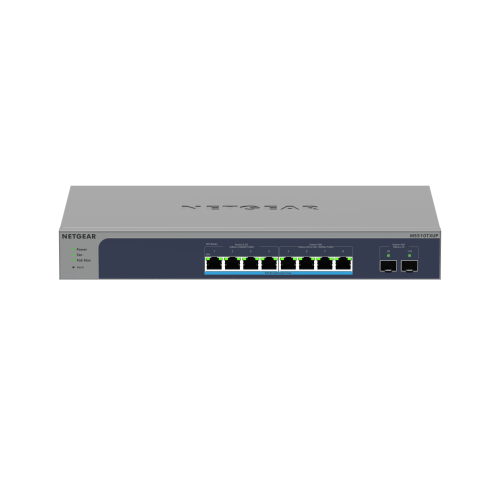

NETGEAR Smart Managed Pro Switches with Optional Remote/Cloud Management
The NETGEAR® MS510TXUP 8-Port Ultra60 PoE++ Multi-Gigabit Smart Managed Pro Switch offers 295W PoE budget, 4 ports 1G/2.5G and 4 ports multi-gig/10G and 2 dedicated 10 Gigabit fiber ports for WiFi 6 AP connectivity, IP surveillance and mobility. MS510TXUP can be managed remotely by NETGEAR Insight and includes 1-year of Insight Premium or Pro subscription with purchase.
- Multi-speed Ethernet ports for flexible and auto-adaptive wired connectivity of multi-Gigabit devices.
- 2-port 10G SFP+ Fiber uplinks (1G/10GBASE-X fiber SFP+).
- 295W future-proof PoE budget available across 8 Ultra60 PoE++ ports (802.3bt 60W/port).
- Layer 3 static routing with 32 routes (IPv4 and IPv6).
- Uninterrupted PoE and advanced per port PoE controls.
- NETGEAR Insight Cloud management activation (1-Year Insight subscription is included).
- Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings.
The NETGEAR® MS510TXUP 8-Port Ultra60 PoE++ Multi-Gigabit Smart Managed Pro Switch offers 295W PoE budget, 4 ports 1G/2.5G and 4 ports multi-gig/10G and 2 dedicated 10 Gigabit fiber ports for WiFi 6 AP connectivity, IP surveillance and mobility. MS510TXUP can be managed remotely by NETGEAR Insight and includes 1-year of Insight Premium or Pro subscription with purchase.
- Multi-speed Ethernet ports for flexible and auto-adaptive wired connectivity of multi-Gigabit devices.
- 2-port 10G SFP+ Fiber uplinks (1G/10GBASE-X fiber SFP+).
- 295W future-proof PoE budget available across 8 Ultra60 PoE++ ports (802.3bt 60W/port).
- Layer 3 static routing with 32 routes (IPv4 and IPv6).
- Uninterrupted PoE and advanced per port PoE controls.
- NETGEAR Insight Cloud management activation (1-Year Insight subscription is included).
- Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings.
Built-in Processor
- Yes
Power Consumption (max)
- 380 W
Power over Ethernet (PoE)
- Yes
Power over Ethernet plus (PoE+) Ports Quantity
- 8
Total Power over Ethernet (PoE) budget
- 295 W
Quality of Service (QoS) Support
- Yes
Web-based Management
- Yes
SFP Plus Module Slots Quantity
- 2
Access Control List (ACL)
- Yes
IGMP Snooping
- Yes
Rack Mounting
- Yes
Noise Level
- 33 dB
Heat Dissipation
- 1294.5888 BTU/h
Port Mirroring
- Yes
Number of Queues
- 8
Non-operating Altitude
- 0 - 3000 m
Power Supply Included
- Yes
Processor Frequency
- 1000 MHz
Firmware Upgradeable
- Yes
User Guide
- Yes
Broadcast Storm Control
- Yes
Rack Rails
- Yes
Mean Time Between Failures (MTBF)
- 1059519 h
Number of Fans
- 3 fan(s)
DHCP Features
- DHCPv6 snooping
Password Protection
- Yes
Cloud-Managed
- Yes
Queue Scheduling Algorithms
- WRR+SP
Number of Multicast Groups Filtered
- 256
Installed SFP Modules Quantity
- 0
Installed SFP+ Modules Quantity
- 0
Operating altitude
- 0 - 3000 m
Product colour
- Grey
Harmonized System (HS) code
- 85176990
Height
- 43 mm
Width
- 330 mm
Depth
- 206 mm
Weight
- 2.51 kg
Operating temperature (T-T)
- 0 - 50 °C
Operating relative humidity (H-H)
- 0 - 95%
Cables included
- AC
Networking standards
- IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x
VLAN support
- Yes
LED indicators
- Activity, Fan fail, Link, PoE, Power, Speed
Storage temperature (T-T)
- -20 - 70 °C
Storage relative humidity (H-H)
- 0 - 95%
Switch type
- Managed
Switch layer
- L2+
Basic switching RJ-45 Ethernet ports quantity
- 8
Basic switching RJ-45 Ethernet ports type
- 10G Ethernet (100/1000/10000)
10G support
- Yes
Number of VLANs
- 256
MAC address table
- 32000 entries
Switching capacity
- 140 Gbit/s
Jumbo frames support
- Yes
Jumbo frames
- 10000
Packet buffer memory
- 2 MB
Multicast support
- Yes
Internal memory
- 256 MB
Flash memory
- 64 MB
Brand
- Netgear
