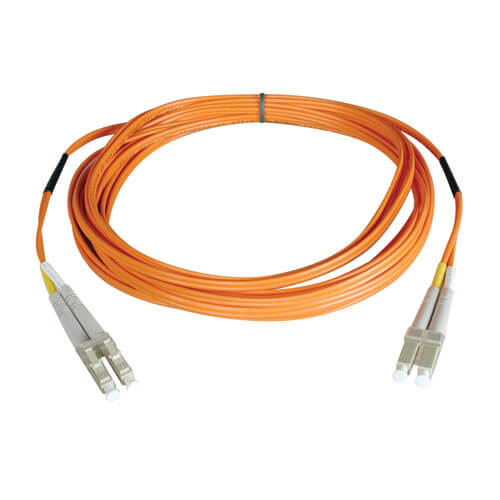

Constructed with 50/125 micron cable Length 100M Ships on a Reel Use on fiber and fibre channel installations LC male to LC male connectors Higher bandwidth optimized for gigabit networks Backward compatible with 62.5 micron fiber Builtin headroom for future applications Number of fibers: 2 Fiber type: all glass graded index Core diameter: two 50+/3 microns CLAD diameter: 125+/2 microns Primary coating diameter: 245+/15 microns Primary coating material: acrylate Secondary coating diameter: 900+/50 microns Secondary coating material: PVC Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum Bandwidth @850NM: 220 MHzKM minimum, @1300NM: 600 MHzKM minimum Numeric apeture: .275 nominal Proof test level: 100,000 PSI Insertion loss testing performed on every connector (0.2db typical) and provided with cable Beveled edge on ends of glass makes insertion of plug a breeze
Brand
- Tripp Lite
