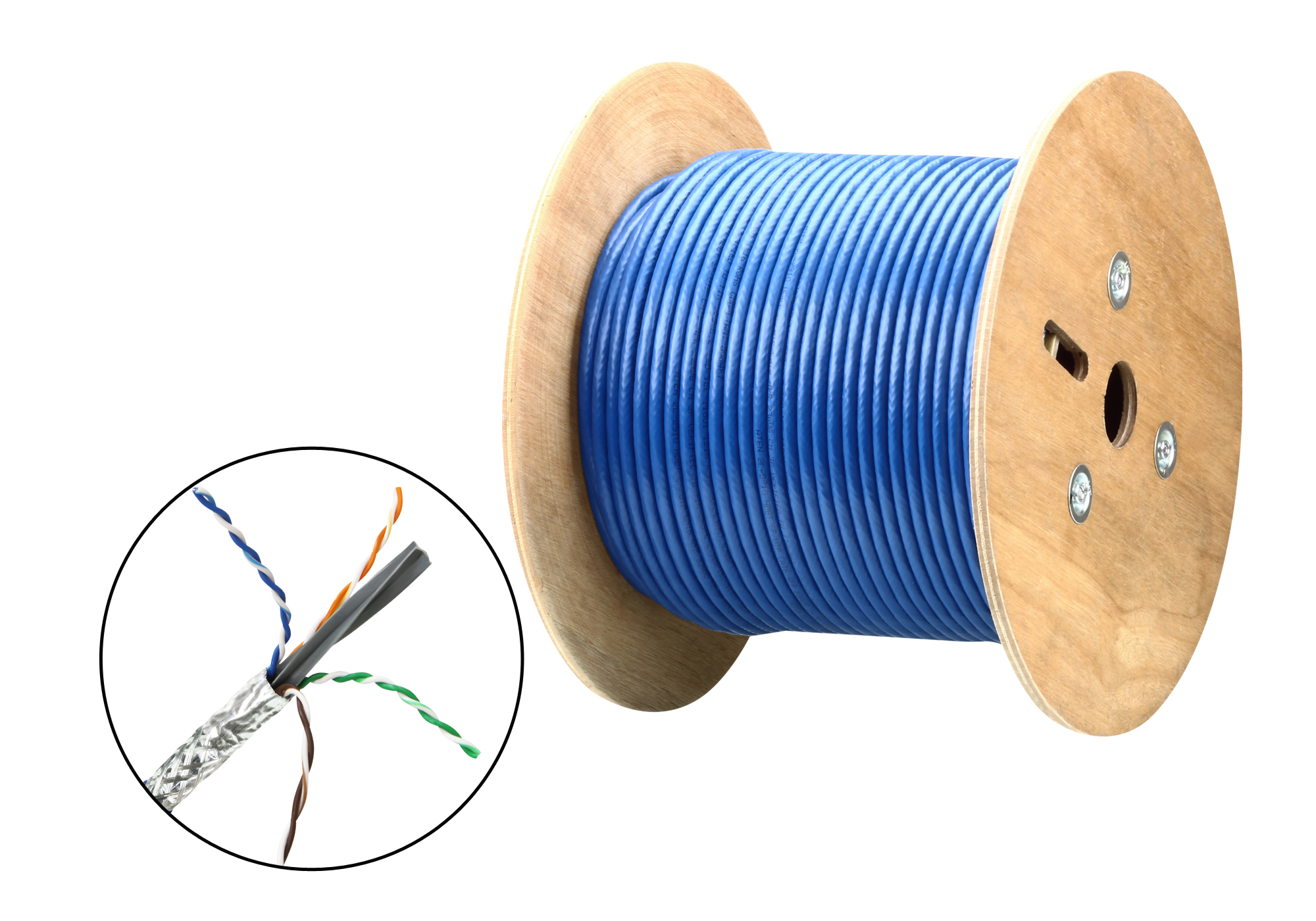

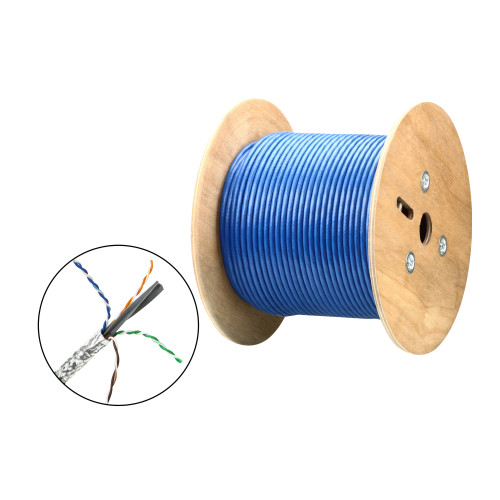

The 2L-2910 is a twisted pair cable engineered for optimum signal transmission at resolutions up to 4K including digital and analogue data, audio, and video applications. The cable supports sweep frequency up to 400 MHz and has been verified to meet performance requirements set by the HDBaseT Alliance.
The 2L-2910 supports long distance connections while safeguarding transmission quality. The outer metal layer and the braid protect signal transmissions from electromagnetic interference and reduce the impact caused by electrical noise.
The 2L-2910 utilizes SF/UTP design with four unshielded 23 AWG twisted pair conductors. Among the four unshielded twisted pair conductors, there is one cross filler to reduce cross talk. Most importantly, the cable meets the requirements set by ANSI/ TIA-568-C.2 (2009) ensuring high performance in electrical transmission.
The 2L-2910 supports long distance connections while safeguarding transmission quality. The outer metal layer and the braid protect signal transmissions from electromagnetic interference and reduce the impact caused by electrical noise.
The 2L-2910 utilizes SF/UTP design with four unshielded 23 AWG twisted pair conductors. Among the four unshielded twisted pair conductors, there is one cross filler to reduce cross talk. Most importantly, the cable meets the requirements set by ANSI/ TIA-568-C.2 (2009) ensuring high performance in electrical transmission.
Networking standards
- IEEE 802.3af, IEEE 802.3at
Connector Shield Material
- Aluminium
Cable Shape
- Round
Cable Type
- Crossover cable
Connector Shielding
- Yes
Conductor Type
- Stranded
Jacket Material
- Polyvinyl chloride (PVC)
Frequency
- 400 MHz
Conductor Material
- Copper
Cable Standard
- Cat6
Cable Shielding
- SF/UTP (S-FTP)
AWG Wire Size
- 23
Connector Contacts Plating
- Copper
Operating temperature (T-T)
- -20 - 60 °C
Package weight
- 20.4 kg
Connector 2 gender
- No
Connector 1 gender
- No
Connector 2
- No
Connector 1
- No
Cable length
- 305 m
Weight
- 19.6 kg
Package type
- Wooden drum
Harmonized System (HS) code
- 84733080
Quantity per pack
- 1 pc(s)
Product colour
- Blue
Brand
- ATEN
