Easily connect multiple HDMI sources to a single display._x000D_

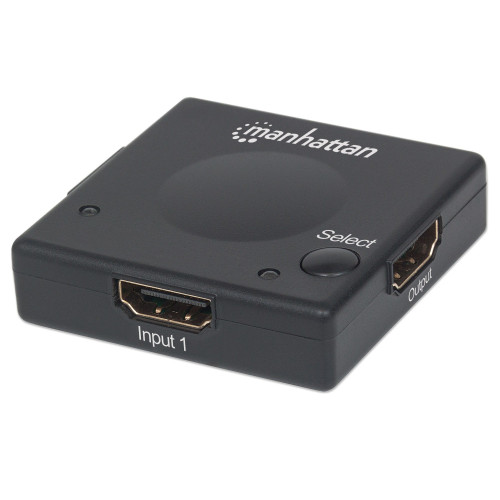

The Manhattan 1080p 2-Port HDMI Switch connects two HDMI video sources — including gaming consoles, Blu-ray players, satellite receivers, digital recorders, set-top boxes and other devices — to a single high-definition display._x000D_
_x000D_
Flexible Solution for Many HD Applications_x000D_
With the increased number of high-definition media devices available, the Manhattan 1080p 2-Port HDMI Switch expands the connectivity options for your HDTV, flat-panel display monitor or video projector. The switch automatically detects and selects the active HDMI source and routes the signal to your display. Additionally, its manual selection button allows users to select sources when more than one HD video source is on at the same time._x000D_
_x000D_
Best Possible Image Quality_x000D_
Full compliance with HDMI and HDCP 1.0 and 1.1 ensures that the Manhattan 1080p 2-Port HDMI Switch provides high-quality performance and reliability. It delivers full 1080p resolution images and supports 3D video as well as LPCM, DTS and Dolby TrueHD audio.
The Manhattan 1080p 2-Port HDMI Switch connects two HDMI video sources — including gaming consoles, Blu-ray players, satellite receivers, digital recorders, set-top boxes and other devices — to a single high-definition display._x000D_
_x000D_
Flexible Solution for Many HD Applications_x000D_
With the increased number of high-definition media devices available, the Manhattan 1080p 2-Port HDMI Switch expands the connectivity options for your HDTV, flat-panel display monitor or video projector. The switch automatically detects and selects the active HDMI source and routes the signal to your display. Additionally, its manual selection button allows users to select sources when more than one HD video source is on at the same time._x000D_
_x000D_
Best Possible Image Quality_x000D_
Full compliance with HDMI and HDCP 1.0 and 1.1 ensures that the Manhattan 1080p 2-Port HDMI Switch provides high-quality performance and reliability. It delivers full 1080p resolution images and supports 3D video as well as LPCM, DTS and Dolby TrueHD audio.
Compliance Certificates
- RoHS
Display Data Channel (DDC) Input
- 5 V
Audio Decoders
- DTS, DTS-HD Master Audio, Dolby TrueHD
HDMI In
- 2
Number of HDMI Outputs
- 1
Supported Video Modes
- 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
HDCP
- Yes
Plug and Play
- Yes
HDMI Version
- 1.3b
Maximum Operating Distance
- 5 m
HD Type
- Full HD
3D
- Yes
Connector Contacts Plating
- Gold
Video Port Type
- HDMI
Quick Start Guide
- Yes
Certification
- CE, FCC
Storage temperature (T-T)
- -20 - 60 °C
LED indicators
- Activity, Power
Operating relative humidity (H-H)
- 0 - 96%
Operating temperature (T-T)
- 0 - 40 °C
Bandwidth
- 250 MHz
Weight
- 30 g
Depth
- 51 mm
Width
- 51 mm
Height
- 15 mm
Harmonized System (HS) code
- 85176990
Quantity per pack
- 1 pc(s)
Product colour
- Black
Material
- Plastic
Brand
- Manhattan
