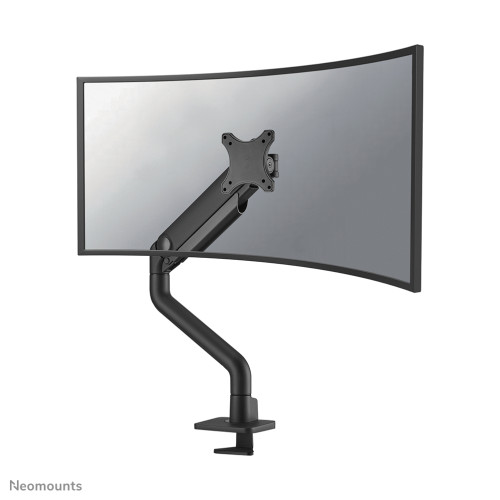

The Neomounts DS70S-950BL1 NEXT One is a full motion desk mount for screens up to 49". The DS70S-950BL1 is a true all-in one solution for small to large displays. The NEXT One features a strengthened head specifically designed to also support curved ultra-wide screens and features a higher maximum weight capacity up to 18 kg (curved 15 kg). The versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (20-52 cm) and depth adjustment (8,8-62,5 cm), to create the perfect working position.
The DS70S-950BL1 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.
The black VESA plate of the NEXT One integrate stylishly with the black back of your screen. The DS70S-950BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The packaging of the DS70S-950BL1 desk mount 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.
The DS70S-950BL1 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.
The black VESA plate of the NEXT One integrate stylishly with the black back of your screen. The DS70S-950BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The packaging of the DS70S-950BL1 desk mount 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.
Width
- 135 mm
Package depth
- 122 mm
Package height
- 423 mm
Minimum weight
- 1 kg
Country of origin
- China
Harmonized System (HS) code
- 7326909890
Package net weight
- 4.3 kg
Desk thickness (min)
- 1 cm
Swivel angle range
- -90 - 90°
Height
- 579 mm
Distance to the wall (max)
- 65.6 cm
Package width
- 333 mm
Depth
- 656 mm
Width adjustment range
- 0 - 1074 mm
Distance to the wall (min)
- 11.9 cm
Warranty period
- 10 year(s)
Package type
- Box
Easy to install
- Yes
Maximum weight capacity (per curved/ultra-wide display)
- 15 kg
Clamp mount desk thickness (max)
- 5 cm
Grommet mount desk thickness (max)
- 5.5 cm
Number of arms
- 1
Height adjustment type
- Gas spring
Cable Management
- Yes
Maximum weight capacity
- 18 kg
Maximum screen size
- 124.5 cm (49")
Mounting type
- Desk
Minimum screen size
- 43.2 cm (17")
Number of displays supported
- 1
Mounting
- Clamp/Grommet
Panel mounting interface
- 75 x 75,100 x 100 mm
Desk thickness (max)
- 5.5 cm
Height adjustment
- Yes
Height adjustment range
- 200 - 520 mm
Adjustable depth
- Yes
Depth adjustment range
- 88 - 625 mm
Tilt adjustment
- Yes
Tilt angle range
- -90 - 90°
Swivelling
- Yes
Rotating
- Yes
Angle of rotation
- 360°
Product colour
- Black
Housing material
- Aluminium
Brand
- Neomounts
