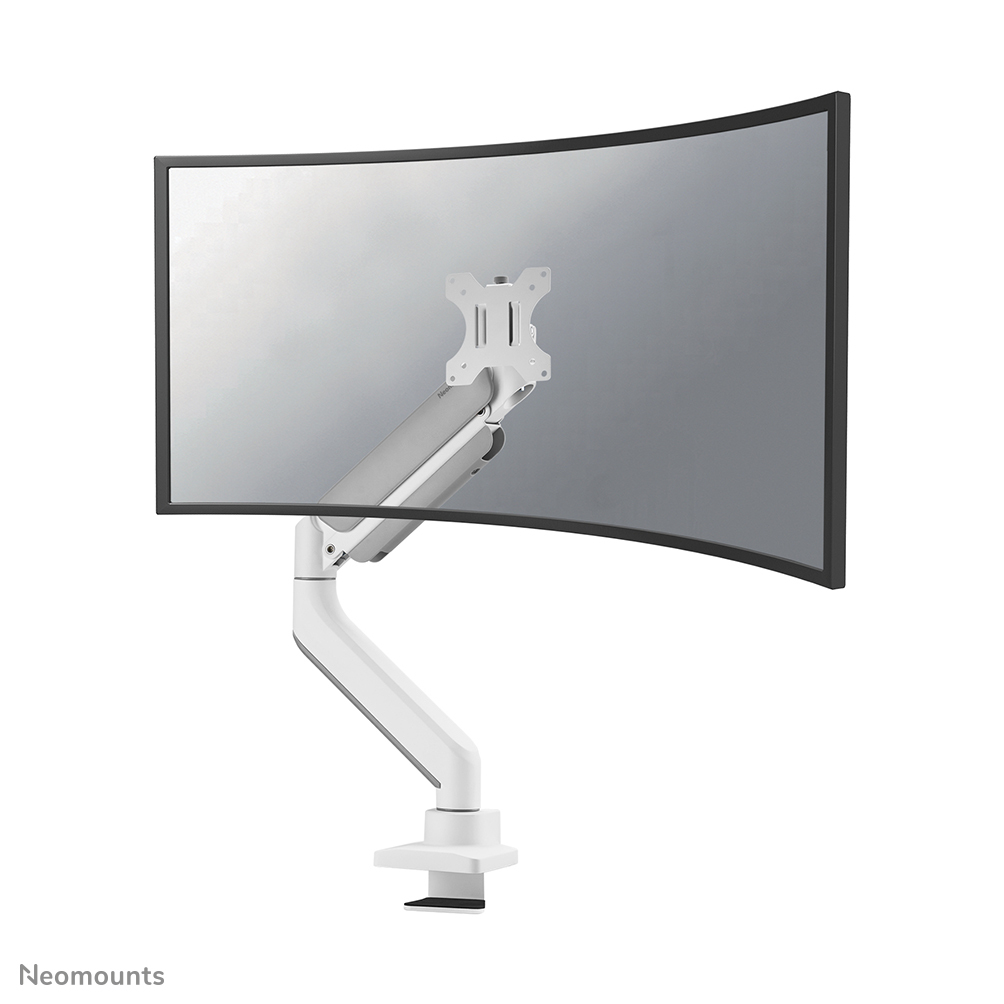

The Neomounts DS70PLUS-450WH1 NEXT Core is a full motion desk mount for curved ultra-wide screens up to 49". The mount features a strengthened head specifically designed for curved ultra-wide screens and to support a higher maximum weight up to 18 kg (curved 14 kg). The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (5,4-49,7 cm), to create the perfect working position.
The DS70PLUS-450WH1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The DS70PLUS-450WH1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The packaging of the NEXT Core is 100% plastic free and entirely made from cardboard and paper.
For wall installation, the AWL75-450WH wall adapter is optionally available.
The DS70PLUS-450WH1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The DS70PLUS-450WH1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The packaging of the NEXT Core is 100% plastic free and entirely made from cardboard and paper.
For wall installation, the AWL75-450WH wall adapter is optionally available.
Desk thickness (min)
- 1 cm
Housing material
- Steel
Quantity per pack
- 1 pc(s)
Package width
- 280 mm
Package depth
- 127 mm
Package height
- 445 mm
Minimum weight
- 1 kg
Country of origin
- China
Harmonized System (HS) code
- 7326909890
Package net weight
- 5.1 kg
Product colour
- White
Swivel angle range
- -90 - 90°
Height
- 653 mm
Distance to the wall (max)
- 56.8 cm
Width
- 120 mm
Depth
- 568 mm
Width adjustment range
- 0 - 920 mm
Distance to the wall (min)
- 10.8 cm
Package type
- Box
Maximum weight capacity (per curved/ultra-wide display)
- 14 kg
Height adjustment
- Yes
Cable Management
- Yes
Maximum weight capacity
- 18 kg
Maximum screen size
- 124.5 cm (49")
Mounting type
- Desk
Minimum screen size
- 43.2 cm (17")
Number of displays supported
- 1
Mounting
- Clamp/Grommet
Panel mounting interface
- 75 x 75,100 x 100 mm
Desk thickness (max)
- 4.5 cm
Height adjustment type
- Gas spring
Height adjustment range
- 261 - 555 mm
Adjustable depth
- Yes
Depth adjustment range
- 54 - 511 mm
Tilt adjustment
- Yes
Tilt angle range
- -45 - 45°
Swivelling
- Yes
Rotating
- Yes
Angle of rotation
- 360°
Brand
- Neomounts
