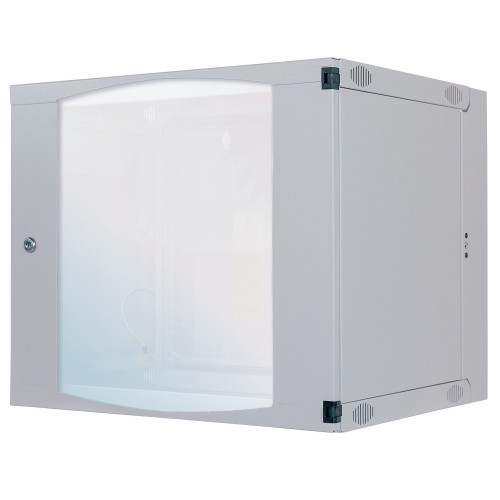

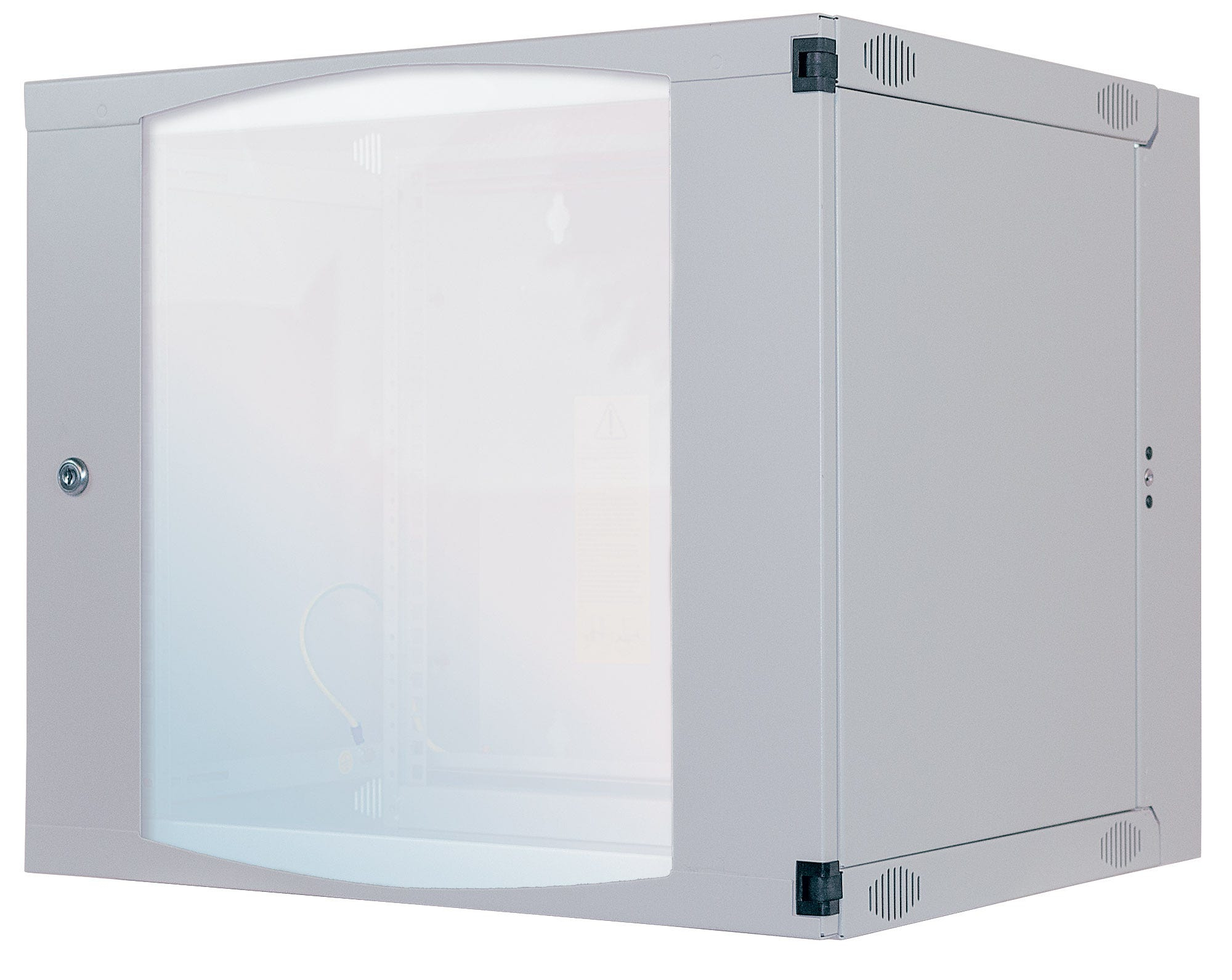

The Intellinet Network Solutions wallmount cabinets offer you a flexible and comprehensive solution for your network installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flatpack version._x000D_
_x000D_
In terms of housing, you can choose from among the extra-compact 10″ cabinets and numerous 19″ versions, with installation depths that range from 300 to 600 mm. With heights from 6 to 20 units in black (RAL9005) or grey (RAL7035), we offer you a solution for every need. The removable side panels, the lockable tempered glass-door that can be opened more than 180° and the optional double section make cabling and component exchange particularly easy.
_x000D_
In terms of housing, you can choose from among the extra-compact 10″ cabinets and numerous 19″ versions, with installation depths that range from 300 to 600 mm. With heights from 6 to 20 units in black (RAL9005) or grey (RAL7035), we offer you a solution for every need. The removable side panels, the lockable tempered glass-door that can be opened more than 180° and the optional double section make cabling and component exchange particularly easy.
Certification
- ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7
Front Door Construction
- Glass
Key Lock
- Yes
Size (Imperial)
- 48.3 cm (19")
Side Panels Included
- Yes
Removable Side Panels
- Yes
Front Door Key Lock
- Yes
Rack Capacity
- 12U
Frame Type
- Closed
Weight
- 20.5 kg
Depth
- 450 mm
Width
- 540 mm
Height
- 593 mm
Harmonized System (HS) code
- 85381000
Product colour
- Grey
Maximum weight capacity
- 30 kg
Material
- Glass, SPCC
Brand
- Intellinet
