The Intellinet Network Solutions network cabinets offer you a flexible and comprehensive solution for your network installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flatpack version._x000D_
_x000D_

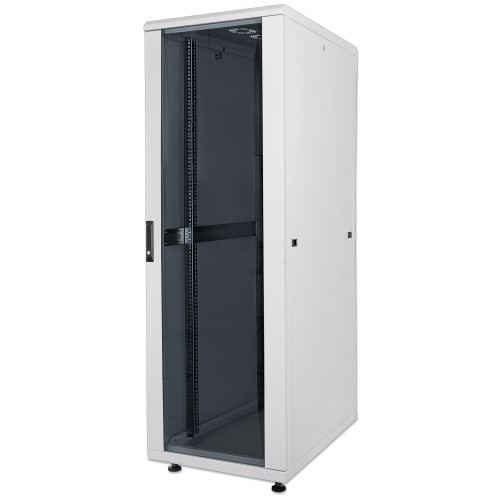

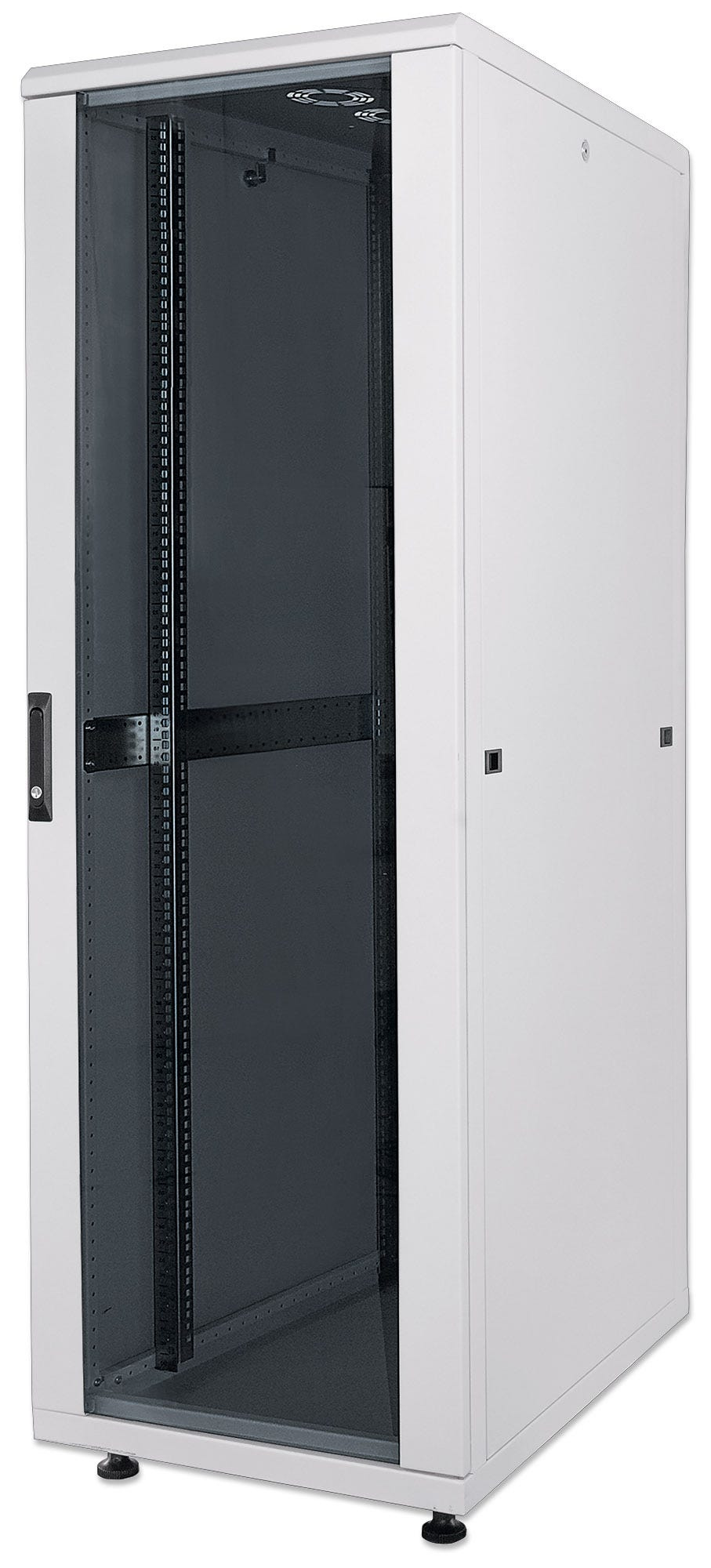

In terms of housing, you have numerous 19″ options with installation depths that range from 600 to 800 mm: With heights from 16 to 42 units in black (RAL9005) or grey (RAL7035), we offer you a solution for every need. The removable side panels and the lockable tempered-glass door make cabling and component exchange particularly easy._x000D_
_x000D_
In material and workmanship, we provide top quality. Part of that is a cold-rolled steel frame, zinc-plated 19″ mounting rails and antistatic powder coating on all panels.
_x000D_
In terms of housing, you have numerous 19″ options with installation depths that range from 600 to 800 mm: With heights from 16 to 42 units in black (RAL9005) or grey (RAL7035), we offer you a solution for every need. The removable side panels and the lockable tempered-glass door make cabling and component exchange particularly easy._x000D_
_x000D_
In material and workmanship, we provide top quality. Part of that is a cold-rolled steel frame, zinc-plated 19″ mounting rails and antistatic powder coating on all panels.
Compliance Certificates
- RoHS
Front Door Construction
- Glass
Key Lock
- Yes
Size (Imperial)
- 48.3 cm (19")
Side Panels Included
- Yes
Removable Side Panels
- Yes
Front Door Key Lock
- Yes
Adjustable Mounting Rails
- Yes
Adjustable Feet
- Yes
Rack Capacity
- 36U
Frame Type
- Closed
Certification
- UL, Gost-R
International Protection (IP) code
- IP20
Weight
- 94 kg
Depth
- 600 mm
Width
- 600 mm
Height
- 1766 mm
Harmonized System (HS) code
- 85381000
Product colour
- Grey
Adjustable depth
- Yes
Maximum weight capacity
- 1500 kg
Brand
- Intellinet
