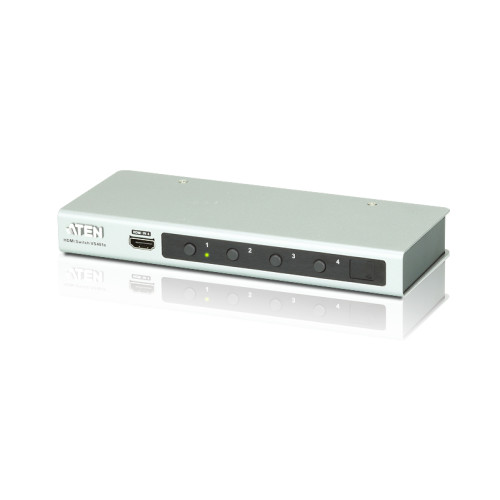

The VS481B 4-Port HDMI Switch allows you to quickly connect 4 HDMI sources to your HDMI display and easily switch between them via front panel pushbuttons, RS-232 or IR remote control. The front panel’s LEDs indicate the source device selected for the display at a glance.
The VS481B supports Ultra HD 4Kx2K, the newest resolution for high definition displays; Auto Switching modes for auto port selection;Instant Switching for a smooth video transition between HDMI ports with increased efficiency; and features a built-in bi-directional RS-232 serial port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.
The VS481B supports Ultra HD 4Kx2K, the newest resolution for high definition displays; Auto Switching modes for auto port selection;Instant Switching for a smooth video transition between HDMI ports with increased efficiency; and features a built-in bi-directional RS-232 serial port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.
LED indicators
- Yes
HDMI In
- 4
RS-232 Ports
- 1
Number of HDMI Outputs
- 1
Supported Video Modes
- 480p, 720p, 1080p, 2160p
DC-In Jack
- Yes
Supported Graphics Resolutions
- 640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3860 x 2160, 4096 x 2160
AC Adapter Output Voltage
- 5 V
Video Port Type
- HDMI
Storage temperature (T-T)
- -20 - 60 °C
Operating relative humidity (H-H)
- 0 - 80%
Operating temperature (T-T)
- 0 - 50 °C
Power consumption (typical)
- 5 W
Weight
- 470 g
Depth
- 82.5 mm
Width
- 200 mm
Height
- 25 mm
Product colour
- Black, White
Material
- Metal
Brand
- ATEN
