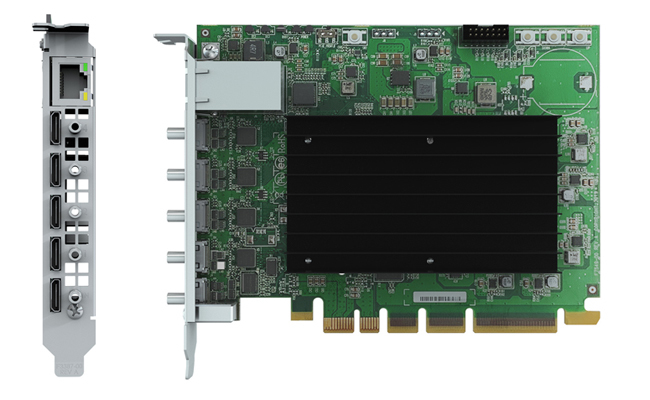

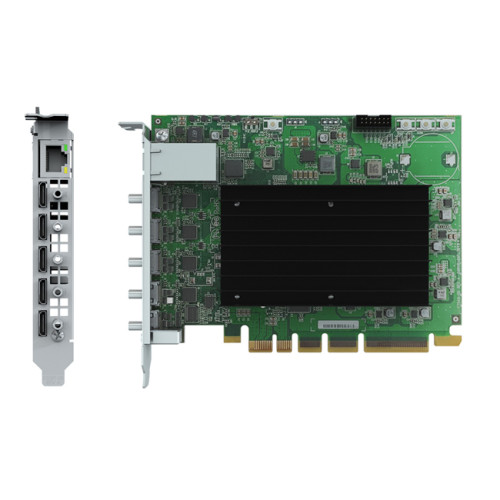

Matrox® QuadHead2Go™ Q155 Multi-Monitor-Controller
Scalable. Flexible. Easy-to-Deploy Video Walls.
Capable of driving four displays from one signal, the Matrox® QuadHead2Go™ Q155 multi-monitor controller card provides complete video wall scalability and flexibility. The single-slot PCIe® card is designed to power any video wall configuration of any possible dimension, from any HDMI® video source—reliably delivering flawless image quality across expansive video wall displays. QuadHead2Go’s pre-set configurations and built-in images simplify the installation experience.
Scalable. Flexible. Easy-to-Deploy Video Walls.
Capable of driving four displays from one signal, the Matrox® QuadHead2Go™ Q155 multi-monitor controller card provides complete video wall scalability and flexibility. The single-slot PCIe® card is designed to power any video wall configuration of any possible dimension, from any HDMI® video source—reliably delivering flawless image quality across expansive video wall displays. QuadHead2Go’s pre-set configurations and built-in images simplify the installation experience.
Bundled Software
- Matrox PowerWall: https://www.matrox.com/graphics/en/products/video-wall/powerwall/
Built-in Fan
- No
RJ-45 Ports Quantity
- 1
HDMI Output Ports Quantity
- 4
HDMI Input Ports Quantity
- 1
Internal Storage Capacity
- 1 GB
HDCP
- Yes
Cabling Technology
- 10/100Base-T(X)
Built-in Processor
- Yes
Ethernet LAN Data Rates
- 1000 Mbit/s
Power Consumption (max)
- 15 W
Certification
- Regulatory/environmental compliance: EMC Class A: FCC, CE, KC, RCM, VCCI
Storage relative humidity (H-H)
- 5 - 95%
Storage temperature (T-T)
- -40 - 70 °C
Operating relative humidity (H-H)
- 20 - 80%
Operating temperature (T-T)
- 0 - 45 °C
Ethernet LAN
- Yes
Brand
- Matrox Video
