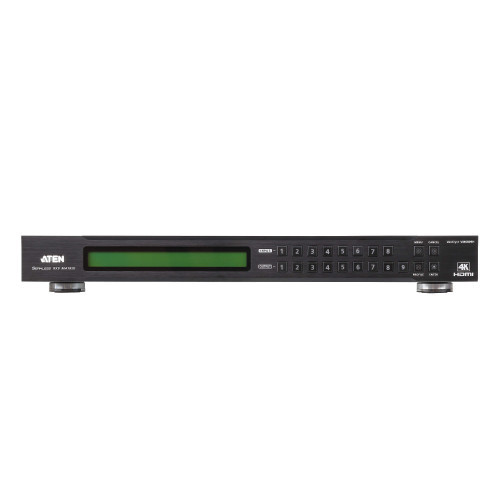

4K is the next generation of image quality for high definition video, which delivers eight million pixels that is four times as much detail as 1080p Full HD resolutions. ATEN’s VM6809H 4K HDMI Matrix Switch with Scaler is compatible with the two latest 4K video resolution standards: 3840 x 2160 and 4096 x 2160. The VM6809H offers powerful HD processing to produce 4K resolutions across nine displays with crystal-clear images.
The VM6809H supports 4K @ 60 Hz, HDMI 2.0* and HDCP 2.2 and features seamless switching that employs an FPGA matrix architecture that ensures continuous video streams, real-time control, and stable signal transmissions. With a built-in high-performance scaler, the VM6809H easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy-to-use web GUI that lets you create 17 connection profiles that can be customized into different video wall layouts.
The VM6809H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently setup – such as for stage presentations, digital classroom, video conference rooms and any installation that requires real-time synchronization.
The VM6809H supports 4K @ 60 Hz, HDMI 2.0* and HDCP 2.2 and features seamless switching that employs an FPGA matrix architecture that ensures continuous video streams, real-time control, and stable signal transmissions. With a built-in high-performance scaler, the VM6809H easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy-to-use web GUI that lets you create 17 connection profiles that can be customized into different video wall layouts.
The VM6809H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently setup – such as for stage presentations, digital classroom, video conference rooms and any installation that requires real-time synchronization.
Rack Capacity
- 1U
AC Adapter Input Voltage
- 100 - 240 V
HD Type
- 4K Ultra HD
Supported Graphics Resolutions
- 3840 x 2160, 4096 x 2160
Built-In Speaker(s)
- No
Maximum Operating Distance
- 15 m
HDMI Version
- 2.0
HDCP
- Yes
HDCP Version
- 2.2
HDM Ports Quantity
- 17
Number of HDMI Outputs
- 9
RS-232 Ports
- 1
RJ-45 Input Ports
- 1
HDMI In
- 8
3.5 mm (1/8-inch) Out
- Yes
Input Impedance
- 100 Ω
Output Impedance
- 100 Ω
AC Adapter Frequency
- 50/60 Hz
Bandwidth
- 340 MHz
Material
- Metal
Product colour
- Black
Quantity per pack
- 1 pc(s)
Height
- 44 mm
Width
- 450.3 mm
Depth
- 432.4 mm
Mounting kit
- Yes
Weight
- 7.05 kg
Operating temperature (T-T)
- 0 - 50 °C
Cables included
- AC
LED indicators
- Yes
Storage temperature (T-T)
- -20 - 60 °C
Compliance Certificates
- RoHS
Maximum Resolution
- 4096 x 2160 pixels
Video Port Type
- HDMI
3D
- Yes
Brand
- ATEN
