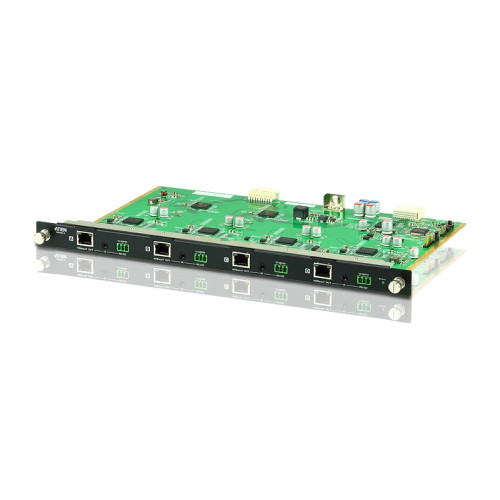

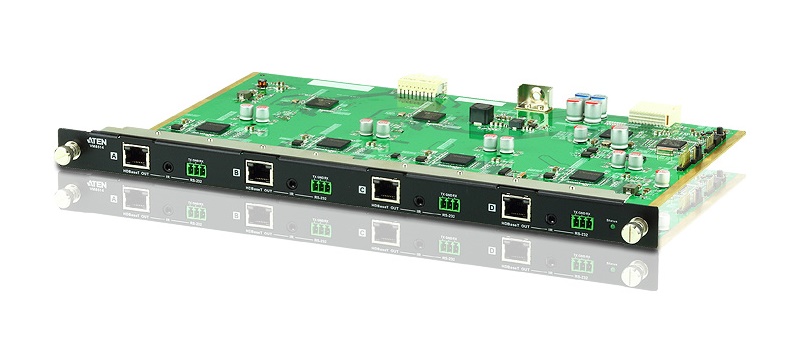

The VM8514 4-Port HDBaseT Output Board offers an easy way route 4 HDBaseT transmitters to 4 HDBaseT receivers, and in combination with the ATEN Modular Matrix Switches to provide the ability of routing up to 32 input and 32 output HDBaseT connections.
1x VM8514 4-Port HDBaseT Output Board
4x JCTN-3401-103G Terminal Block Connectors
1x 2xRT-0003G-1 IR Transmitter
1x 2xRT-0004G IR Receiver
1x User Instructions
1x VM8514 4-Port HDBaseT Output Board
4x JCTN-3401-103G Terminal Block Connectors
1x 2xRT-0003G-1 IR Transmitter
1x 2xRT-0004G IR Receiver
1x User Instructions
Depth
- 352 mm
RJ-45 Ports Quantity
- 4
Storage relative humidity (H-H)
- 0 - 80%
Storage temperature (T-T)
- -20 - 60 °C
Operating relative humidity (H-H)
- 0 - 80%
Operating temperature (T-T)
- 0 - 40 °C
Package weight
- 1.02 kg
Power consumption (typical)
- 12.2 W
Weight
- 635 g
Compatibility
- Aten VM1600A/VM3200
Width
- 238 mm
Height
- 23.3 mm
Package height
- 57 mm
Package depth
- 426 mm
Package width
- 285 mm
Product colour
- Black
Material
- Metal
Product Type
- Output board
Brand
- ATEN
