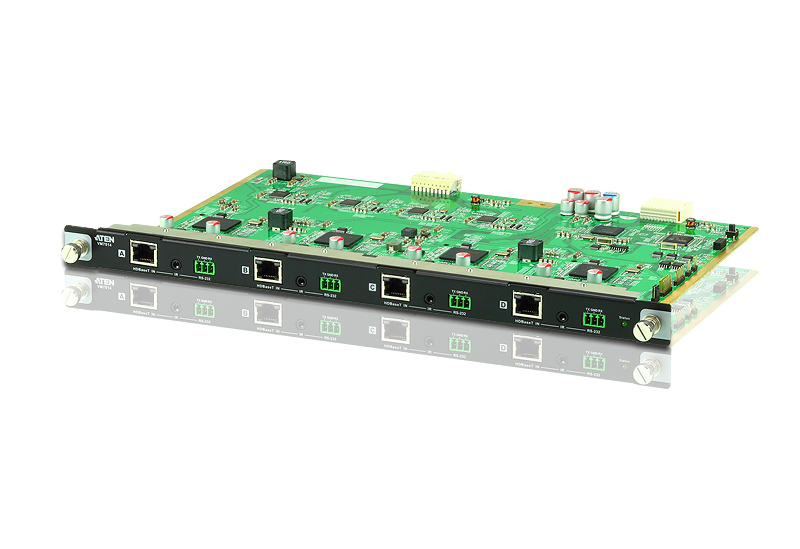

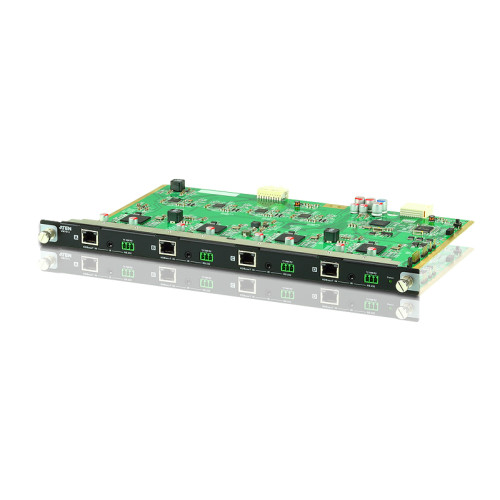

The VM7514 4-Port HDBaseT Input Board offers an easy way route 4 HDBaseT transmitters connected to HDMI sources to 4 HDBaseT receivers connected to HDMI displays, and in combination with the ATEN Modular Matrix Switch provides the ability route up to 16 input and 16 output HDBaseT connections
- Compatible with the VM1600 and can be mixed with modular I/O boards of any type for optimum flexibility
- Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- HDBaseT Connectivity – extends 4 HDBaseT connections up to 100 meters via single Cat 5e/6 cable
- HDBaseT Anti-jamming – resists signal interference during video transmission using HDBaseT technology
- Bi-directional IR channel – IR transmission is processed one direction at a time
- Hot-swappable design for easy integration of I/O boards
- Compatible with the VM1600 and can be mixed with modular I/O boards of any type for optimum flexibility
- Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- HDBaseT Connectivity – extends 4 HDBaseT connections up to 100 meters via single Cat 5e/6 cable
- HDBaseT Anti-jamming – resists signal interference during video transmission using HDBaseT technology
- Bi-directional IR channel – IR transmission is processed one direction at a time
- Hot-swappable design for easy integration of I/O boards
Operating temperature (T-T)
- 0 - 40 °C
RJ-45 Input Ports
- 4
RS-232 Ports
- 4
Supported Video Modes
- 2160p
HDCP
- Yes
Packaging Content
- 1x VM7514 4-Port HDBaseT Input Board, 4x Terminal Block Connectors, 1x IR Transmitter, 1x IR Receiver, 1x User Instructions
Supported Graphics Resolutions
- 4096 x 2160
Audio (L/R) Out
- 4
Length
- 352 mm
Maximum Resolution
- 4096 x 2160 pixels
Storage temperature (T-T)
- -20 - 60 °C
Power consumption (typical)
- 24.5 W
Bandwidth
- 340 MHz
Cable length
- 1000 m
Weight
- 990 g
Width
- 237 mm
Height
- 228 mm
Quantity per pack
- 1 pc(s)
Product colour
- Black, Green
Material
- Metal
Brand
- ATEN
