VE8952R-AT-E

SKU: AVATEN229
MPN: VE8952R-AT-E
Weight: 0.73kg
Manufacturer Brand Image
£649.00 Ex VAT

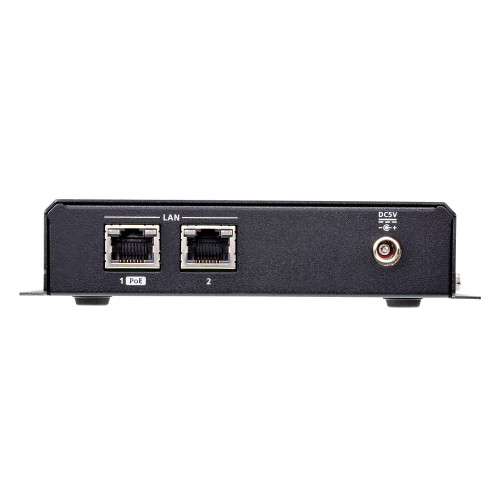

The ATEN VE8952R 4K HDMI over IP Receiver with PoE delivers visually lossless 4K AV signals with low latency over long distance via a standard Gigabit network. It is an effective and easy-to-use solution that directly addresses the challenges system integrators encounter when deploying AV over IP.
Limitless Scalability and Flexibility
From a simple point-to-point setup to hundreds of endpoints, it offers flexibility, scalability and multi-functionality in extender, splitter, matrix switch, and video wall applications.

No Complicated IP Setup
Allows you to effortlessly switch input sources via top panel pushbuttons/ID display and offers simple configuration that requires no extensive IT experience.

No Additional Server PCs or Software Required
Effortlessly manage your AV over IP system by logging in to any receiver from the intuitive web GUI with drag and drop operation.

Go Further for Less with Daisy Chaining
Easily expand your AV network coverage without cable clutter or extra network switches while also lowering per-port costs.

Locate Anywhere without the Need for Power Cabling
With PoE support, you can easily place VE8952R units where they are needed the most without having to install additional power cabling and outlets.

Flexible Control with Mobile App
Manage and control any VE8952R with a dedicated app (VE8950/VE8900 Control App) that allows instant preview, monitoring, and switching of video sources to streamline your operations.
*Note: For more information regarding installation and network switch requirements, please refer to the Implementation Guide : assets.aten.com/product/manual/VE89_Implementation_Guide.pdf
1x VE8952R 4K HDMI over IP Receiver with PoE
1x JCNA-17A6-208G RS-232 Terminal Block
1x 0AD8-1F05-30M1 Power Adapter
4x Foot Pads
1x User Instructions
USB Ports Quantity
  • 2
Rack Mounting
  • Yes
Maximum Resolution
  • 4096 x 2160 pixels
USB Connector Type
  • USB Type-A
DC-In Jack
  • Yes
HDCP
  • Yes
Maximum Refresh Rate
  • 60 Hz
Cable Types Supported
  • Cat5e, Cat6
Number of HDMI Outputs
  • 1
Power over Ethernet (PoE)
  • Yes
RJ-45 Input Ports
  • 2
Remote (IR) Output
  • 1
External Power Adapter
  • Yes
Audio Output
  • 1
Extended Display Identification Data (EDID)
  • Yes
Daisy Chain
  • Yes
RS-232 Output ports
  • 1
Front Panel Control (RX)
  • Yes
Weight
  • 730 g
Product colour
  • Black
Quantity per pack
  • 1 pc(s)
Package width
  • 62 mm
Package depth
  • 283 mm
Package height
  • 173 mm
Height
  • 29 mm
Width
  • 124.9 mm
Depth
  • 166 mm
Package weight
  • 975 g
Operating temperature (T-T)
  • 0 - 40 °C
Operating relative humidity (H-H)
  • 0 - 80%
Connectivity technology
  • Wired
Maximum transfer distance
  • 100 m
LED indicators
  • Yes
Storage temperature (T-T)
  • -20 - 60 °C
Storage relative humidity (H-H)
  • 0 - 80%
Brand
  • ATEN
