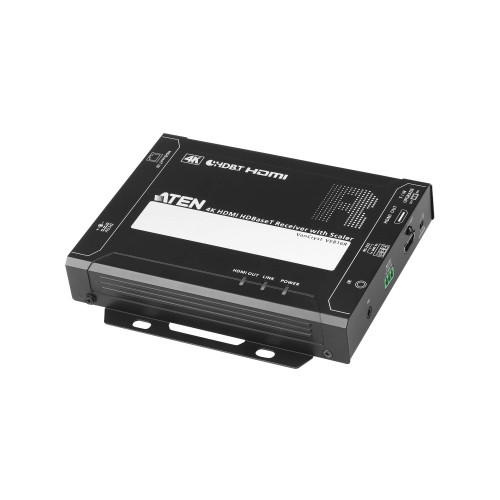

ATEN VE816R 4K HDMI HDBaseT Receiver with Scaler is designed to work with several ATEN HDBaseT Matrix Switches to extend 4K HDMI signals up to 100 m over a single Cat 5e/6/6a or an ATEN 2L-2910 Cat 6 cable, and at the same time, scales videos of different resolutions for optimal display.
Supporting bi-directional RS-232 channel and IR signaling pass-through, the VE816R provides users the path to remotely control the compatible devices. When working with ATEN HDBaseT Matrix, The VE816R features Frame Sync and Cable Quality Tester technologies to ensure smooth video and intuitive cable testing process.
When working with ATEN HDMI HDBaseT-Lite Matrix Switches, or Modular Matrix Switches with HDBaseT output boards, the VE816R supports video wall integration and ATEN’s Seamless Switch ™ function, providing users the ultimate A/V experiences.
Package Contents
- 1x VE816R 4K HDMI HDBaseT Receiver with Scaler
- 1x IR Transmitter
- 1x IR Receiver
- 1x Terminal Block
- 1x Power Adapter
- 1x User Instructions
Supporting bi-directional RS-232 channel and IR signaling pass-through, the VE816R provides users the path to remotely control the compatible devices. When working with ATEN HDBaseT Matrix, The VE816R features Frame Sync and Cable Quality Tester technologies to ensure smooth video and intuitive cable testing process.
When working with ATEN HDMI HDBaseT-Lite Matrix Switches, or Modular Matrix Switches with HDBaseT output boards, the VE816R supports video wall integration and ATEN’s Seamless Switch ™ function, providing users the ultimate A/V experiences.
Package Contents
- 1x VE816R 4K HDMI HDBaseT Receiver with Scaler
- 1x IR Transmitter
- 1x IR Receiver
- 1x Terminal Block
- 1x Power Adapter
- 1x User Instructions
Remote (IR) Input
- 1
Supported Graphics Resolutions
- 3860 x 2160, 4096 x 2160
Serial Interface Type
- RS-232
Plug and Play
- Yes
DC-In Jack
- Yes
HDCP
- Yes
Supported Video Modes
- 1080p
Cable Types Supported
- Cat5e, Cat6
Number of HDMI Outputs
- 1
RJ-45 Input Ports
- 1
3D
- Yes
Firmware Upgradeable
- Yes
External Power Adapter
- Yes
Operating Voltage
- 5 V
Serial Ports Quantity
- 1
Electrostatic Discharge (ESD) Protection
- 15 kV
IR Blaster Included
- Yes
IR Receiver Included
- Yes
HDBaseT Certified
- Yes
Operating temperature (T-T)
- 0 - 40 °C
Material
- Metal
Product colour
- Black
Height
- 29 mm
Width
- 124.9 mm
Depth
- 166 mm
Weight
- 670 g
Bandwidth
- 340 MHz
Power consumption (typical)
- 9.09 W
Operating relative humidity (H-H)
- 0 - 80%
Connectivity technology
- Wired
Maximum transfer distance
- 150 m
LED indicators
- Yes
Storage temperature (T-T)
- -20 - 60 °C
Compliance Certificates
- RoHS
Maximum Resolution
- 4096 x 2160 pixels
AC Adapter Included
- Yes
Brand
- ATEN
