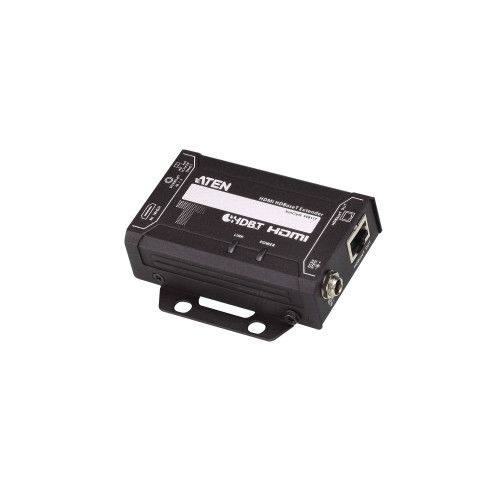

The ATEN VE811T HDMI HDBaseT Transmitter guarantees the optimum HDMI connection up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. The VE811T meets HDMI Specification features including 3D, Deep Color, HD lossless audio formats and CEC pass through. It supports Dolby Digital 5.1, DTS HD audio and video signals at resolutions up to 4K.
Pushing the technology and design to the limit, the compact design makes the VE811T easy to mount in any location. Engineered for today’s digital trends, the VE811T is ideal for meeting rooms, or any setting that requires high quality HDMI video to be extended for great distances.
Pushing the technology and design to the limit, the compact design makes the VE811T easy to mount in any location. Engineered for today’s digital trends, the VE811T is ideal for meeting rooms, or any setting that requires high quality HDMI video to be extended for great distances.
Storage relative humidity (H-H)
- 0 - 80%
Operating Voltage
- 5 V
HDMI In
- 1
Transmitter Dimensions (WxDxH)
- 82 x 52 x 23.7 mm
Transmitter Weight
- 160 g
Cable Types Supported
- Cat6
Supported Video Modes
- 1080p, 2160p
Maximum Refresh Rate
- 60 Hz
DC-In Jack
- Yes
Supported Graphics Resolutions
- 3840 x 2160, 4096 x 2160
3D
- Yes
Maximum Resolution
- 4096 x 2160 pixels
Storage temperature (T-T)
- -20 - 60 °C
Maximum transfer distance
- 1.8 m
Connectivity technology
- Wired
Operating relative humidity (H-H)
- 0 - 80%
Operating temperature (T-T)
- 0 - 40 °C
Ethernet LAN
- Yes
Power consumption (typical)
- 3.77 W
Bandwidth
- 10.2 Gbit/s
Quantity per pack
- 1 pc(s)
Product colour
- Black
Material
- Metal
Brand
- ATEN
